Overview
With its compact design and fitting options to fit a wide range of front mower manufacturers with two-point linkage, Spearhead’s Outfront flail mower is the perfect machine for councils and contractors.
This compact machine creates a consistent quality finish in material up to 30mm in diameter thanks to its spiral rotor design, available in cutting widths of either 1.4 or 1.6m, fitted with standard fitment heavy-duty hammer flails. Finish is further enhanced thanks to a 4 1/2” rear roller.
The machine features a three belt drive transmission, easy to adjust height setting and front guide wheels — all combined to give all day long operating reliability and ease of use to the operator.
| AGRICULTURE |
| PASTURE |
| AMENITY |
| LIGHT SCRUB |

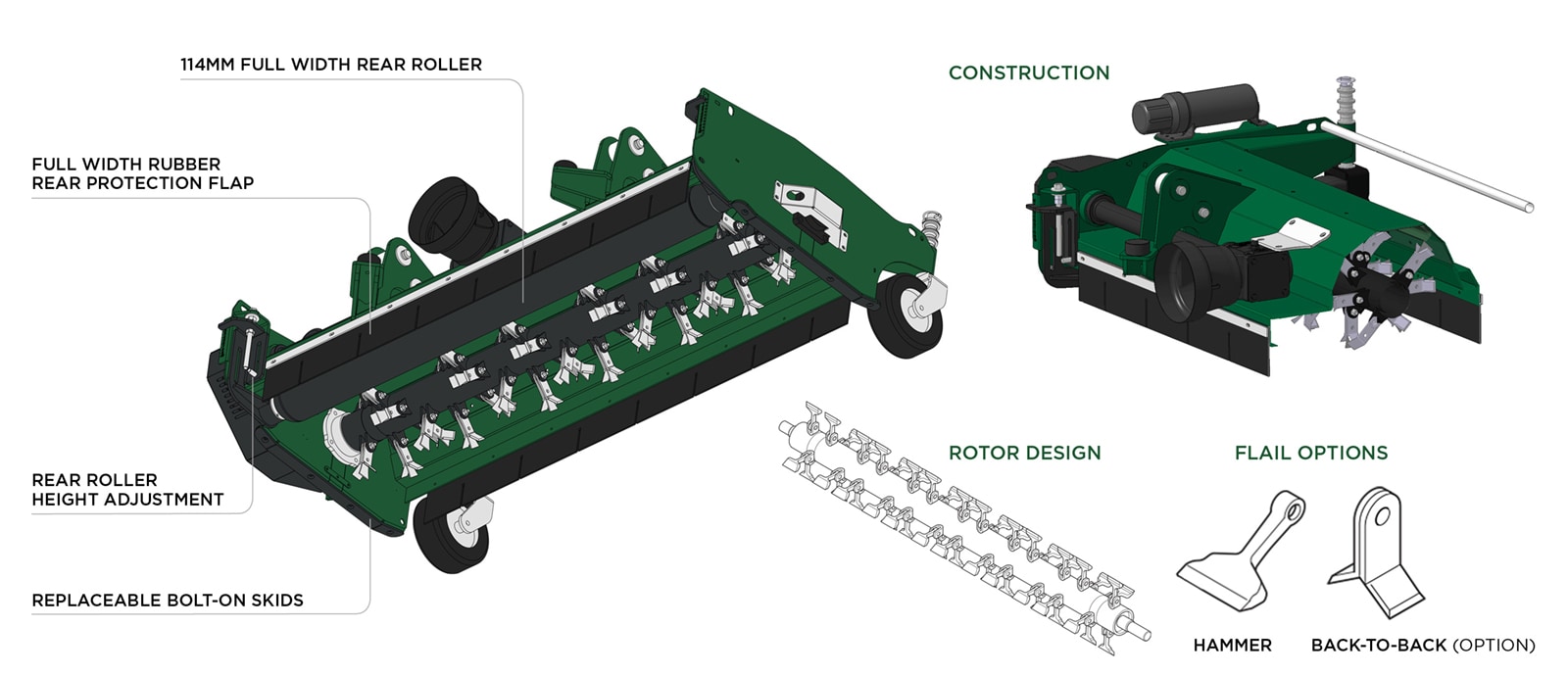

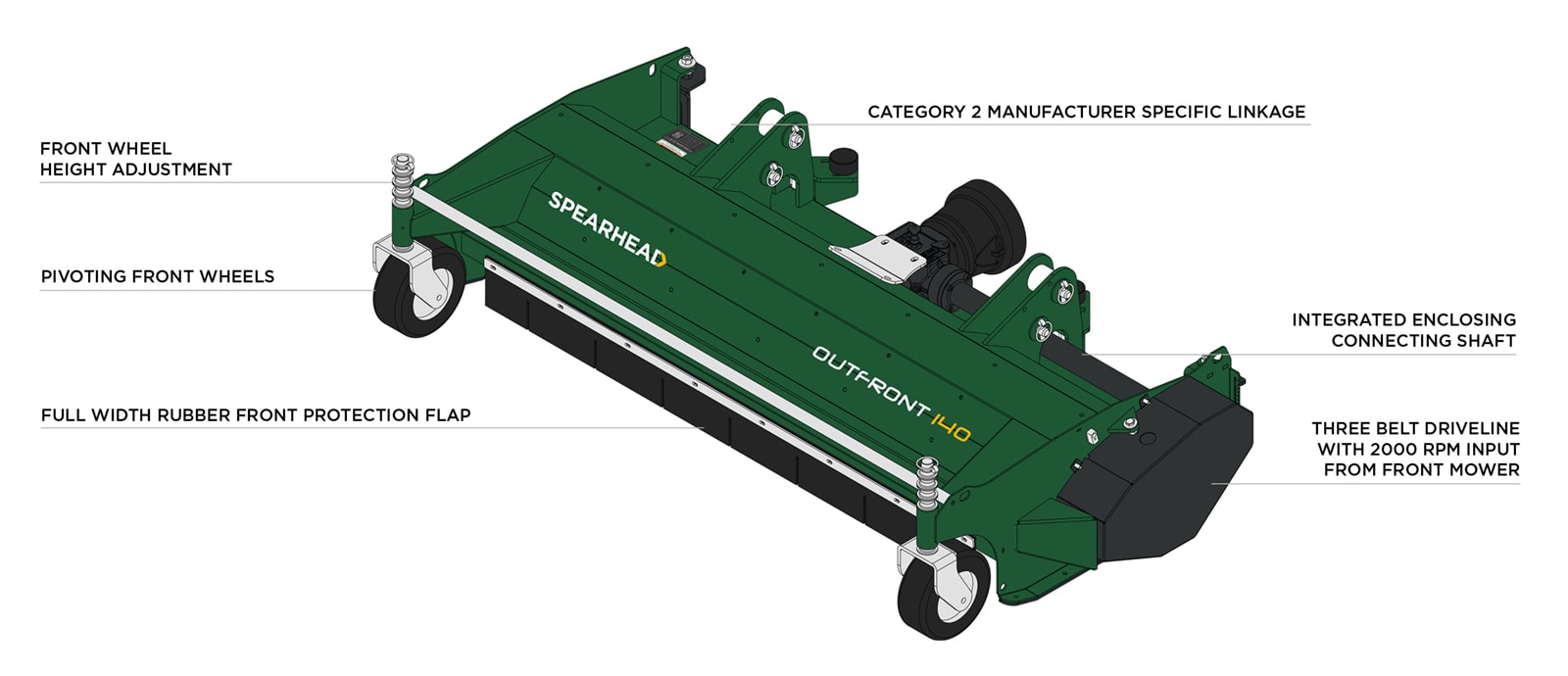

Features
Specifications
Machine weight*: 210kg (463lbs)
Minimum weight guide: 800kg (1764lbs)
Hitch: Specified to the prime mover
Hitch position: Front mount only
Cutting width: 1.40m (4′ 7″)
Overall width:1.60m (5′ 3″)
Overall length: 1.10m (3′ 7″)
Cowl height**: –
Cutting height: 20mm – 100mm (13/16″ – 3 15/16″)
Cutting capacity: 30mm (1 3/16″)
Maximum offset distance (hydraulic): 100mm (4″)
Recommended Tractor HP: 14 – 45hp (12 – 34kW)
Power take-off speed: 2000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.52 litres (0.9 pints)
Belt quantity: 4
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type (standard): Heavy duty hammer flail
Flail quantity: 44
Flail tip speed: 50 m/s (9842 fpm)
Rotor diameter: 95mm (3.7″)
Roller diameter: 114mm (4.5″)
*Weights may vary dependent on machine specification
**Top of cowl to floor
**Top of cowl to floor
Machine weight*: 250kg (551lbs)
Minimum weight guide: 800kg (1764lbs)
Hitch: Specified to the prime mover
Hitch position: Front mount only
Cutting width: 1.60m (5′ 3″)
Overall width:1.80m (5′ 11″)
Overall length: 1.10m (3′ 7″)
Cowl height**: –
Cutting height: 20mm – 100mm (13/16″ – 3 15/16″)
Cutting capacity: 30mm (1 3/16″)
Maximum offset distance (hydraulic): 100mm (4″)
Recommended Tractor HP: 14 – 45hp (12 – 34kW)
Power take-off speed: 2000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.52 litres (0.9 pints)
Belt quantity: 4
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type (standard): Heavy duty hammer flail
Flail quantity: 50
Flail tip speed: 50 m/s (9842 fpm)
Rotor diameter: 95mm (3.7″)
Roller diameter: 114mm (4.5″)
*Weights may vary dependent on machine specification
**Top of cowl to floor
**Top of cowl to floor
