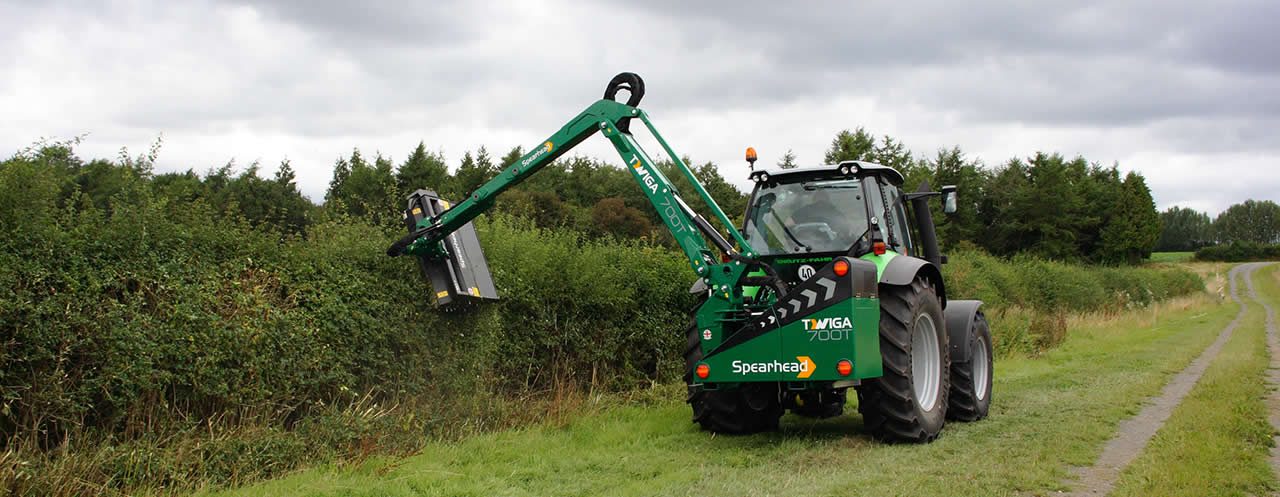

The TWIGA 700T is the longest reach machine in the TWIGA Midrange. This reach arm mower incorporates a telescopic dipper arm to provide a nimble machine that can extend to reach down bank or over obstacles as and when required. The telescoping action is operated via a simple switch with HP2 controls or push buttons when featuring the Pro Pilot control system.
Incorporating up – rated pins, cast iron gearbox and in tank filter the TWIGA 700T builds on all of the success of the classic EXCEL Series to offer a machine suited to the customer with a long reach requirement.
Specification
*Dependant on machine specification (including oil, excluding flailhead or attachment)
**Dependant on conditions
Features
- Cable controls
- Three point linkage mounting
- Left hand or right hand build option
- Cushion top link
- LED rear lighting kit
- Parallel arm geometry
- Telescopic dipper arm
- Totally independent 66hp hydraulic system
- Cast iron pumps and motor
- Heavy duty cast iron gearbox
- Hydraulic power slew and safety breakaway
- 220 litre oil capacity
- Storage support legs
- 1.2 metre MP2 Flailhead
Optional Extras
- HP2 hydraulic proportional controls
- Remote hydraulic roller adjustment
- Autopilot control
- Oil cooler
- Belt drive Flailhead
- Axle mounting system
- Mechanical quick attach bracket
Control options
Cable Controls
Progressive cable controls provide both individual and simultaneous operation of the arm and attachment angling features of the machine at the comfort of the operator.
HP2 hydraulic proportional controls
The classic HP2 low pressure oil over oil hydraulic proportional control system is available as an option on the TWIGA 700T. Ergonomically arranged for logical directional movement and based on technology used widely in the construction industry the HP2 offers simultaneous operation for all services in one convenient package.
Defined by a reliability proven through years of service on the Spearhead Range the HP2 system is the only single lever system you will ever need and will keep you working comfortably long after your competitors.
Pro Pilot hydraulic proportional controls
Pro Pilot sets a new standard for hydraulic/electric proportional reach mower control systems. A more compact package with additional remote mounting for specific operator placement allows the machine to be more suited to mounting in modern tractor cabs.
Benefitting from additional functions on the joystick including proportional head angling, power slew, Telescope/VFR, Autopilot Cancel and Head Float all allowing the operator to manage the machine without moving their hand away from the joystick.
Attachments
Flailhead
Featuring the new Spearhead Flailhead as standard which is used throughout the high specification Spearhead range, the TWIGA 700T benefits from contractors specification technology in a classic package. Build quality and engineering excellence are nothing more than what would be expected and it is now possible to benefit from this on your TWIGA 700T.
Featuring a 140mm T flail and 6 inch roller, maximum durability and increased cutting capacity is confirmed and not just expected.
Quadsaw
With working widths of 2.0 and 2.4 metres the quality Quadsaw is ideal for managing heavy growth and tree limbs of up to 150mm (6”) in diameter. Widely used throughout Europe the LRS2001 and LRS2401 perfectly compliment the TWIGA 700T machine, giving exceptional cutting capacity on even the most stubborn growth.
Cutterbar
The TWIGA 700T can be specified with the HL150, HL180 or HL210 cutterbar. Offered in a length to suit your individual requirements and capable of cutting material up to 40mm in diameter, the HL cutterbar range is ideal when trimming back annual growth.
Also available on the TWIGA 700T is the HX150 and HX225 cutterbar which offers increased cutting capacity at up to 100mm diameter. This range is ideal for making a clean cut on heavier growth.
