With more features fitted as standard, the Spearhead Trident Proline is a professional machine designed for high output amenity operators. Available in cutting widths of either a 4.0 or 6.0 metre in the trailed version and in 4.0 and 5.0 metre versions in the mounted version, being able to be front or rear mounted.

The hydraulic rear roller can be quickly raised and lowered through the Minipilot control system with 20 different cutting height options through easy to set ram spacers.

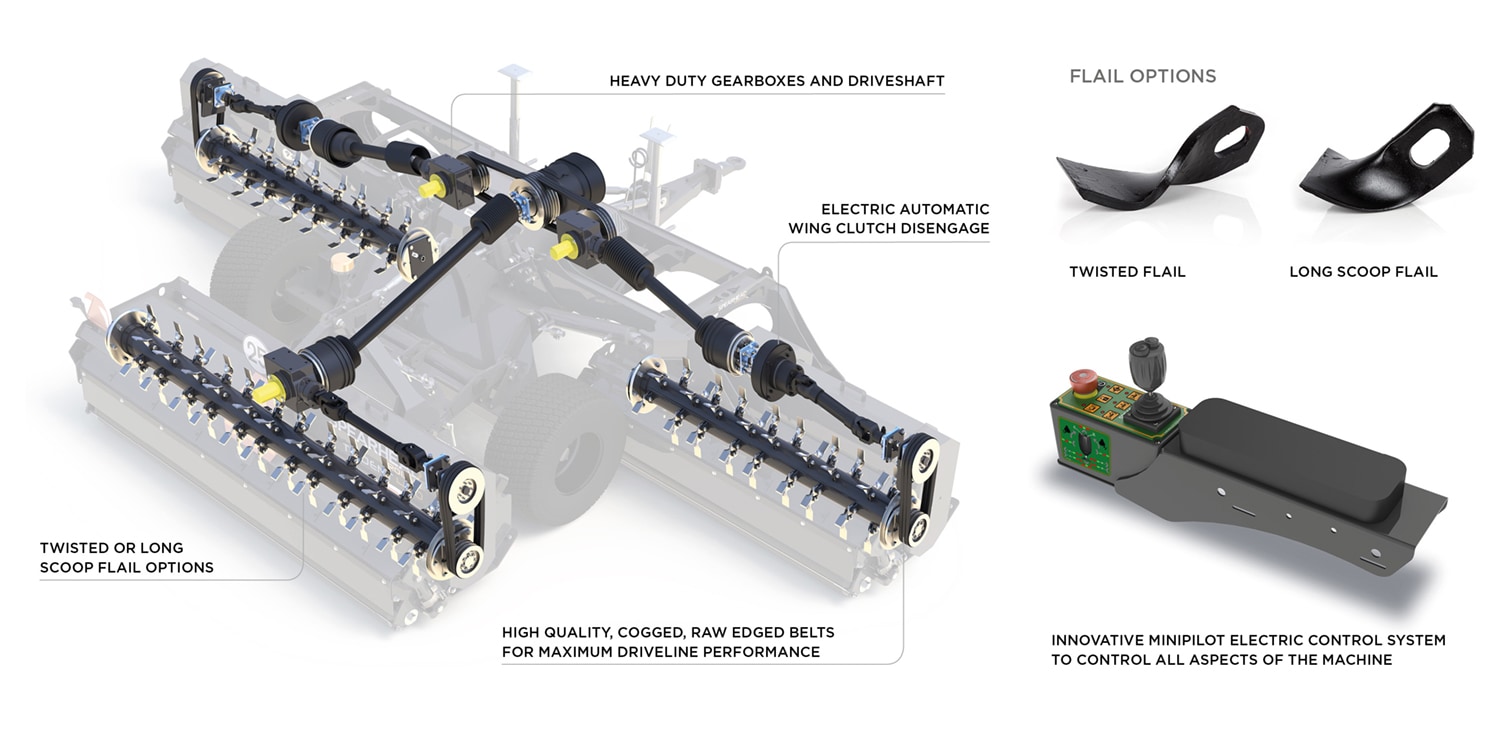

Electric wing clutches with position sensors allow the operator to independently and automatically stop and restart each of the rotors when the particular deck is required to be raised to clear obstacles. Electric wing locks safely secure and release the machine wings from transport without the operator needing to leave the comfort of the cab.

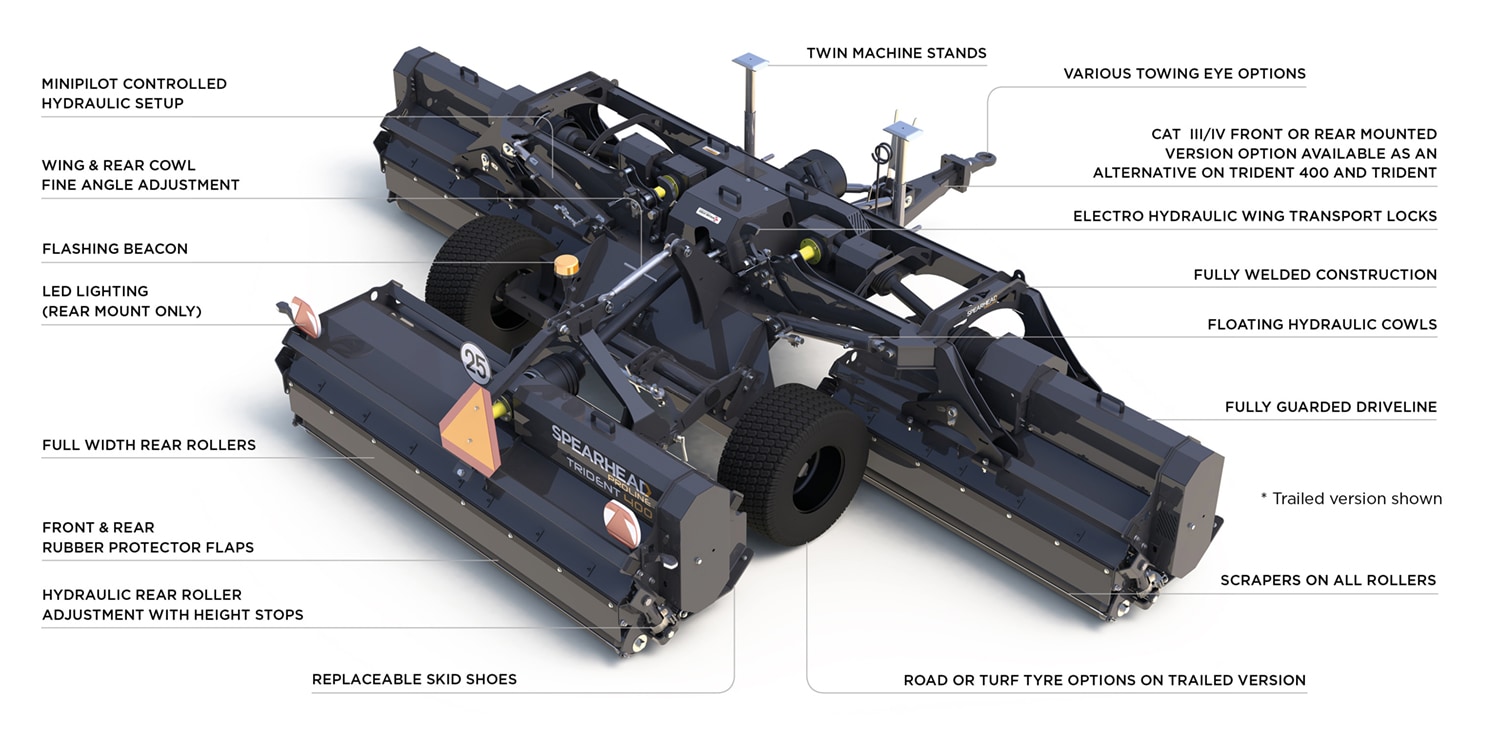

Features such as flashing beacons, mudguards and roller cleaning scraper wires add together to create a machine which improves operations and the produces a greater finish.

PASTURE
AMENITY
AIRFIELD

Features

Trident Proline Series Amenity Mower Features

Standard Specifications

Machine weight*: Trailed: 2450kg (5401lbs) / Mounted: TBC
Minimum weight guide: 6000kg (132281lbs)
Hitch: Trailed: 40mm fixed towing eye / Mounted: Cat 2 with floating clevis
top link
Hitch position: Trailed: Rear mount only / Mounted: Front & rear mount
Cutting width: 4.70m (15′ 5″)
Working width: 5.12m (16′ 10″)
Overall length:Trailed: 3.79m (12′ 5″) / Mounted: 2.37m (7′ 10″)
Transport width: 2.76mm (9′)
Cowl height**: 0.85m (2′ 10″)
Cutting height: 30mm – 220mm (1 3/16″ – 8 5/8″)
Cutting capacity: 20mm (25/32″)
Wing working angles: 45° up/15° down
Recommended tractor HP: 80hp (60kW)
Power take-off speed: 540 / 1000rpm
Tyres: 10.0/8 x 12 road tyres or 26 x 12 turf tyres (trailed version only)
Input shaft: 1 3/8″ Z6
Driveline engagement: Fixed centre body with electric disengage wing bodies
Gearbox (x1): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.0 litre (1.8 pints)
Belt quantity: 15 (3 per cowl, 6 on centre chassis)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type (standard): Twisted
Flail quantity: 156
Flail tip speed: 49m/s (9645 fpm)
Rotor diameter (x3): 400mm (15 3/4″)
Roller diameter (x3): 168mm (6 10/16″)
Roller adjustment: Hydraulic cab control
* Weight may vary dependent on machine specification
** Underside of cowl to skid

Machine weight*: Trailed: 2540kg (5600lbs) / Mounted: TBC
Minimum weight guide: 6500kg (14330lbs)
Hitch: Trailed: 40mm fixed towing eye / Mounted: Cat 2 with floating clevis
top link
Hitch position: Trailed: Rear mount only / Mounted: Front & rear mount
Cutting width: 5.05m (16′ 7″)
Working width: 5.52m (18′ 2″)
Overall length:Trailed: 3.79m (12′ 5″) / Mounted: 2.37m (7′ 10″)
Transport width: 2.76mm (9′)
Cowl height**: 0.85m (2′ 10″)
Cutting height: 30mm – 220mm (1 3/16″ – 8 5/8″)
Cutting capacity: 20mm (25/32″)
Wing working angles: 45° up/15° down
Recommended tractor HP: 90hp (67kW)
Power take-off speed: 540 / 1000rpm
Tyres: 10.0/8 x 12 road tyres or 26 x 12 turf tyres (trailed version only)
Input shaft: 1 3/8″ Z6
Driveline engagement: Fixed centre body with electric disengage wing bodies
Gearbox (x1): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.0 litre (1.8 pints)
Belt quantity: 15 (3 per cowl, 6 on centre chassis)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type (standard): Twisted
Flail quantity: 180
Flail tip speed: 49m/s (9645 fpm)
Rotor diameter (x3): 400mm (15 3/4″)
Roller diameter (x3): 168mm (6 10/16″)
Roller adjustment: Hydraulic cab control
* Weight may vary dependent on machine specification
** Underside of cowl to skid

Machine weight*: Trailed: 2360kg (5203lbs) / Mounted: TBC
Minimum weight guide: 7500kg (16535lbs)
Hitch: Cat 2 with floating clevis
top link
Hitch position: Front & rear mount
Cutting width: 6.16m (20′ 3″)
Working width: 6.56m (21′ 7″)
Overall length:2.37m (7′ 10″)
Transport width: 2.31mm (9′ 3″)
Cowl height**: 0.85m (2′ 10″)
Cutting height: 30mm – 220mm (1 3/16″ – 8 5/8″)
Cutting capacity: 20mm (25/32″)
Wing working angles: 45° up / 15° down
Recommended tractor HP: 120hp (90kW)
Power take-off speed: 540 / 1000rpm
Tyres: N/A
Input shaft: 1 3/8″ Z6
Driveline engagement: Fixed centre body with electric disengage wing bodies
Gearbox (x1): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.0 litre (1.8 pints)
Belt quantity: 15 (3 per cowl, 6 on centre chassis)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type (standard): Twisted
Flail quantity: 210
Flail tip speed: 49m/s (9645 fpm)
Rotor diameter (x3): 400mm (15 3/4″)
Roller diameter (x3): 168mm (6 10/16″)
Roller adjustment: Hydraulic cab control
* Weight may vary dependent on machine specification
** Underside of cowl to skid
