Overview
The Trident Ecoline is designed for light-duty amenity mowing and gives a high-quality finish in material up to 20mm. It excels in parkland, golf course, orchard and topping applications and is the perfect choice for compact tractors.

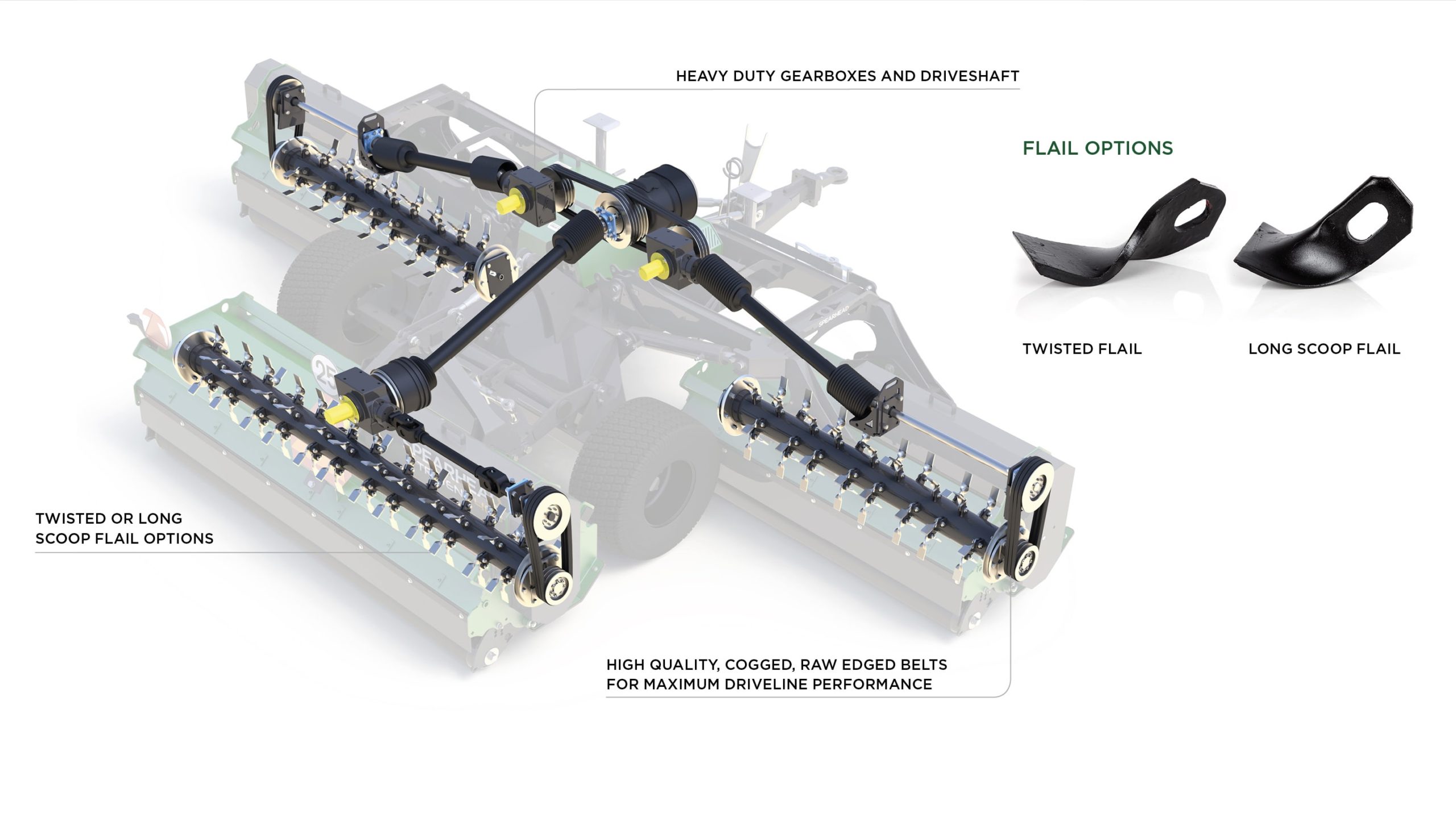

This versatile machine features fine cut flails on constant suction double spiral rotors. Belt drive gives reliable power transmission and 140mm full width adjustable rear rollers with rubber flaps will ensure a quality cut and well distributed finish. Operator flexibility is brought with options such as gearbox wing disengage and various tyre options on trailed versions.
Trailed Trident Ecoline machines are available in either 4.0 or 5.0 metre cutting widths and the mounted version is available in 4.0, 5.0 and 6.0 metre cutting widths, being able to be front or rear mounted.
| PASTURE |
| AMENITY |
| AIRFIELD |

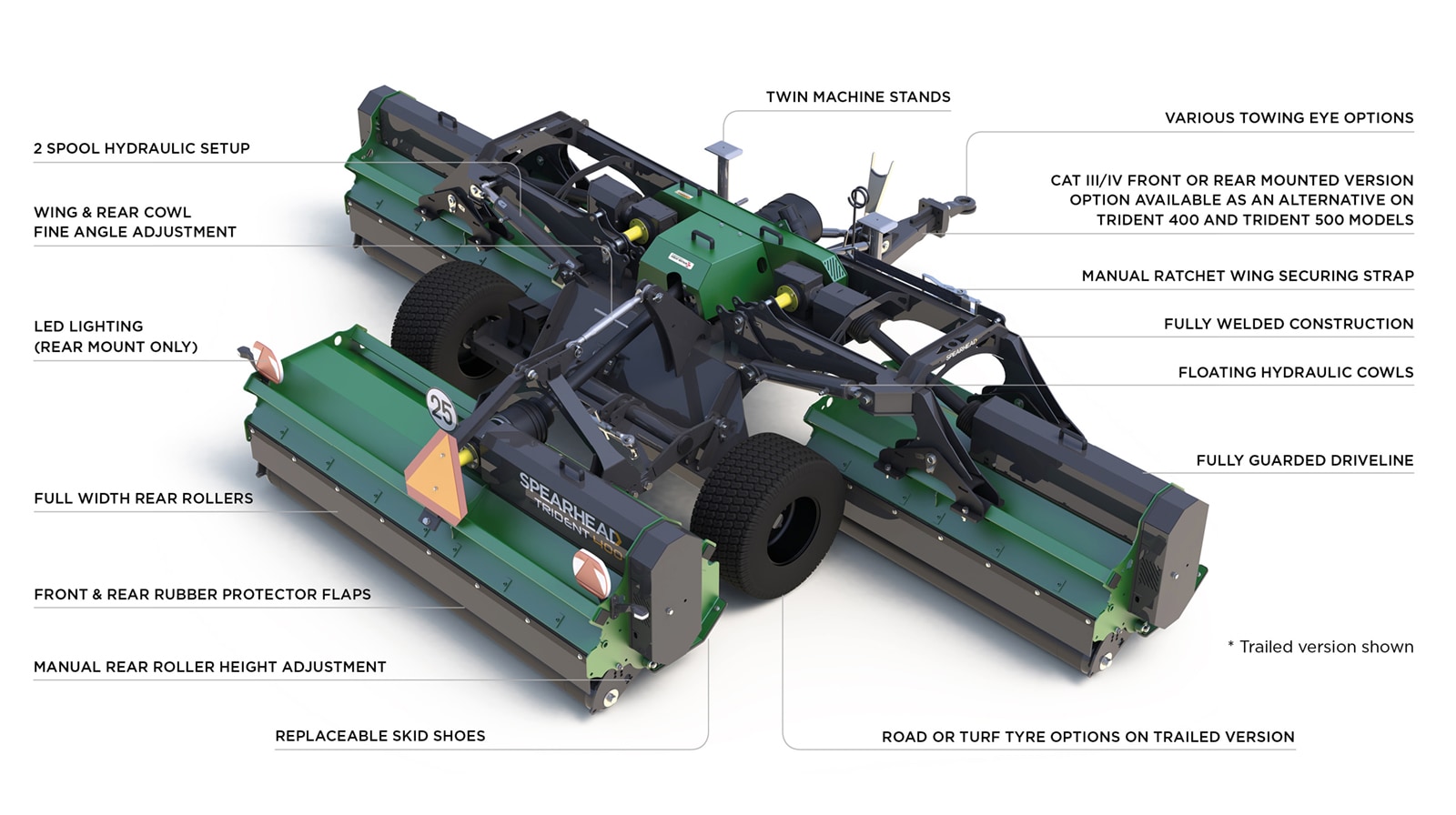

Features
Standard Specifications
Machine weight*: 2360kg (5203lbs) trailed / TBC mounted
Minimum weight guide: 6000kg (132281lbs)
Hitch: Trailed: 40mm fixed towing eye / Mounted: Cat 2 with floating clevis top link
Hitch position: Trailed: Rear mount only / Mounted: Front & rear mount
Cutting width: 4.70m (15′ 5″)
Overall width: 5.12m (16′ 10″)
Overall length:Trailed – 3.79m (12′ 5″) / Mounted – 2.37m (7′ 10″)
Transport width: 2.76mm (9′)
Cowl height**: 0.85m (2′ 10″)
Cutting height: 30mm – 220mm (1 3/16″ – 8 5/8″)
Cutting capacity: 20mm (25/32″)
Wing working angles: 45° up / 15° down
Recommended tractor HP: 80hp (60kW)
Power take-off speed: 540 / 1000rpm
Tyres: 10.0/8 x 12 road tyres or 26 x 12 turf tyres (trailed version only)
Input shaft: 1 3/8″ Z6
Driveine engagement: Fixed mechanical
Gearbox (x1): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.0 litre (1.8 pints)
Belt quantity: 15 (3 per cowl, 6 on centre chassis)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type: Twisted
Flail quantity: 156
Flail tip speed: 49m/s (9645 fpm)
Rotor diameter (x3): 400mm (15 3/4″)
Roller diameter: 168mm (6 10/16″)
Roller adjustment: Manual
*Weight may vary dependent on machine specification
**Top of cowl to floor
**Top of cowl to floor
Machine weight*: 2437kg (5372lbs) trailed / TBC mounted
Minimum weight guide: 6500kg (14330lbs)
Hitch: Trailed: 40mm fixed towing eye / Mounted: Cat 2 with floating clevis top link
Hitch position: Trailed: Rear mount only / Mounted: Front & rear mount
Cutting width: 5.05m (16′ 7″)
Overall width: 5.52m (18′ 2″)
Overall length:Trailed – 3.79m (12′ 5″) / Mounted – 2.37m (7′ 10″)
Transport width: 2.76mm (9′)
Cowl height**: 0.85m (2′ 10″)
Cutting height: 30mm – 220mm (1 3/16″ – 8 5/8″)
Cutting capacity: 20mm (25/32″)
Wing working angles: 45° up / 15° down
Recommended tractor HP: 90hp (67kW)
Power take-off speed: 540 / 1000rpm
Tyres: 10.0/8 x 12 road tyres or 26 x 12 turf tyres (trailed version only)
Input shaft: 1 3/8″ Z6
Driveine engagement: Fixed mechanical
Gearbox (x1): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.0 litre (1.8 pints)
Belt quantity: 15 (3 per cowl, 6 on centre chassis)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type: Twisted
Flail quantity: 180
Flail tip speed: 49m/s (9645 fpm)
Rotor diameter (x3): 400mm (15 3/4″)
Roller diameter: 168mm (6 10/16″)
Roller adjustment: Manual
*Weight may vary dependent on machine specification
**Top of cowl to floor
**Top of cowl to floor
Machine weight*: 2360kg (5203lbs) trailed / TBC mounted
Minimum weight guide: 7500kg (16535lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Front & rear mount
Cutting width: 6.16m (20′ 3″)
Overall width: 6.56m (21′ 7″)
Overall length:2.37m (7′ 10″)
Transport width: 2.31mm (9′ 3″)
Cowl height**: 0.85m (2′ 10″)
Cutting height: 30mm – 220mm (1 3/16″ – 8 5/8″)
Cutting capacity: 20mm (25/32″)
Wing working angles: 45° up / 15° down
Recommended tractor HP: 120hp (90kW)
Power take-off speed: 540 / 1000rpm
Tyres: N/A
Input shaft: 1 3/8″ Z6
Driveine engagement: Fixed mechanical
Gearbox (x1): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.0 litre (1.8 pints)
Belt quantity: 15 (3 per cowl, 6 on centre chassis)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail type: Twisted
Flail quantity: 210
Flail tip speed: 49m/s (9645 fpm)
Rotor diameter (x3): 400mm (15 3/4″)
Roller diameter: 168mm (6 10/16″)
Roller adjustment: Manual
*Weight may vary dependent on machine specification
**Top of cowl to floor
**Top of cowl to floor
