Overview
The Sniper HD flail mower is designed for agricultural and municipal use giving a high quality and consistent cut in material up to 60mm. It is the perfect choice for intense farmers and professional operators such as contractors and local authorities.

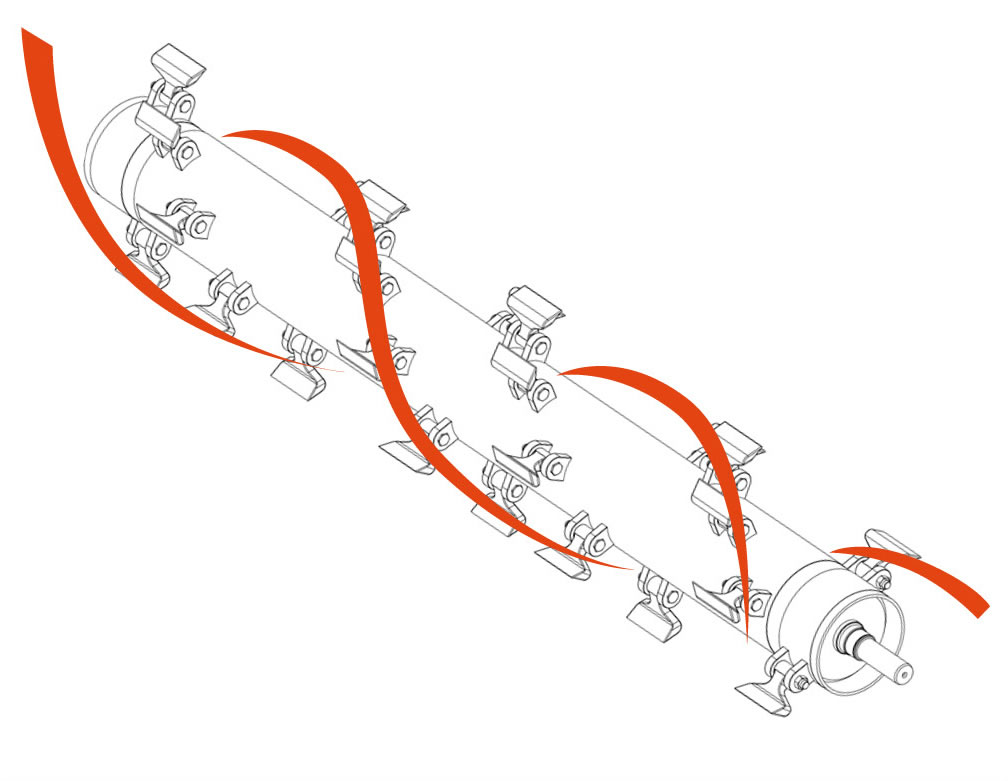

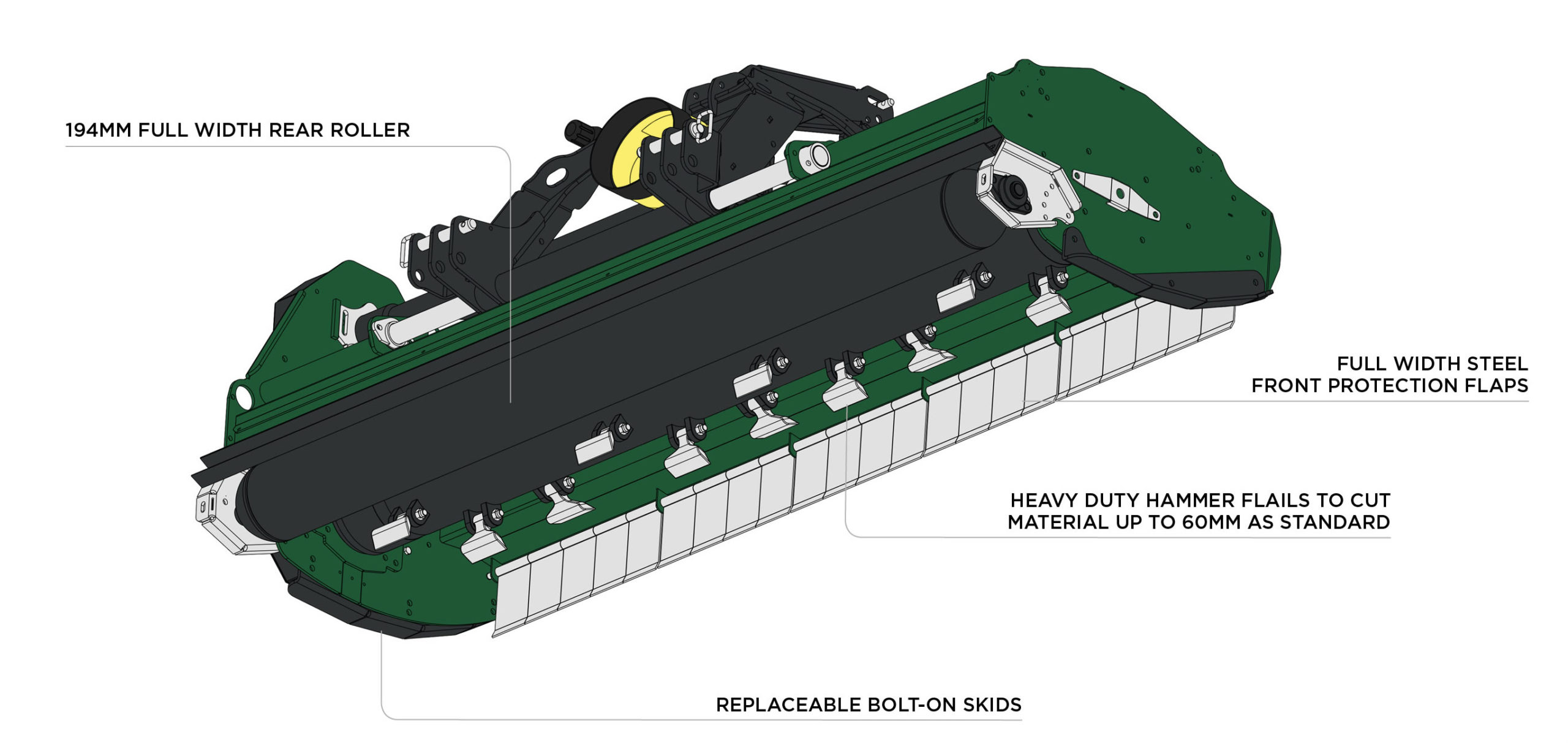

This robust machine features heavy duty hammer flails fitted in a double helical pattern on an electronically balanced rotor mounted on enclosed, self-aligning bearings. Belt drive gives reliable power transmission and a 194mm full width self-cleaning rear roller with scraper and rubber flap will ensure a quality cut and well distributed finish.

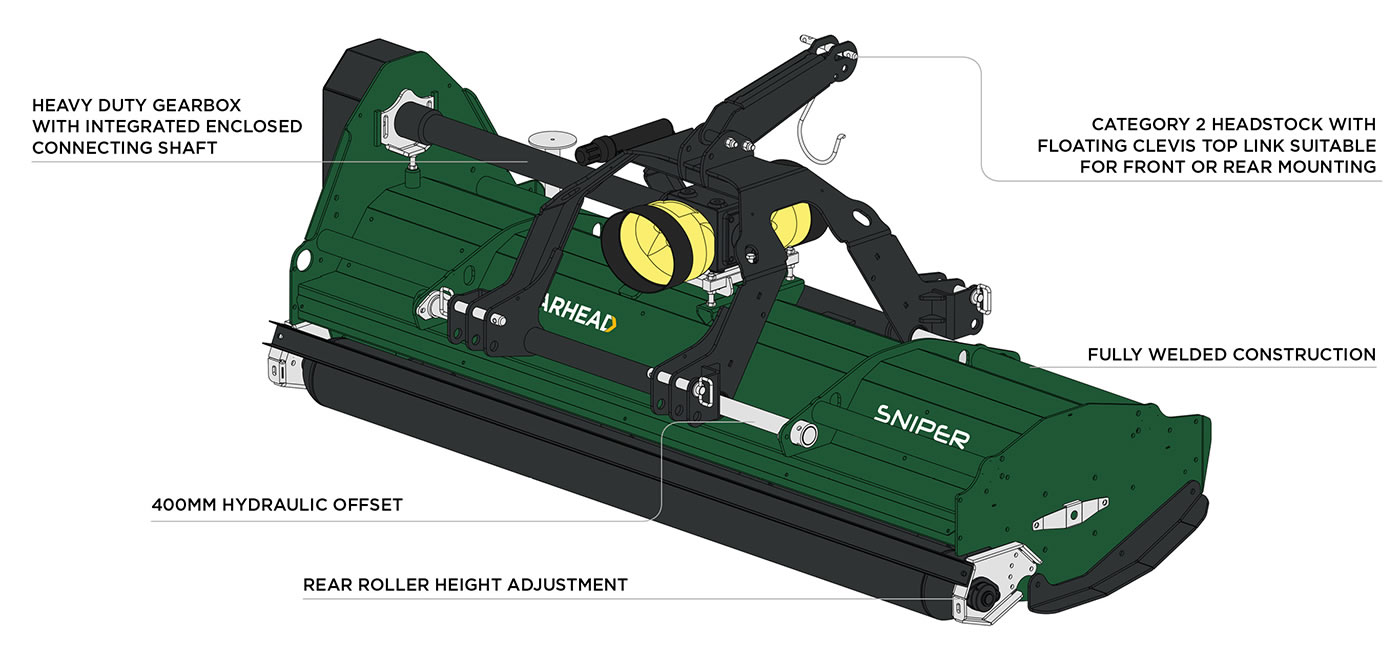

The Sniper HD range is available in a choice of working widths between 2.4 and 3.0 metres with operating flexibility offered by a 400mm hydraulic side shift that allows work around trees and other obstructions. The machine can also be front or rear mounted thanks to a reversible headstock.
| AGRICULTURE |
| PASTURE |
| AMENITY |
| LIGHT SCRUB |
| HIGHWAYS |
| WATERWAYS |
Features
Specifications
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 905kg (1995lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 2.40m (7′ 10″)
Overall width:2.62m (8′ 7″)
Overall length: 1.15m (3′ 9″)
Cowl height**: 540mm (1′ 10″)
Cutting height: 35mm – 110mm (1 3/8″ – 4 5/16″)
Cutting capacity: 60mm (2 3/8″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 80 – 180hp (60 – 135kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.5 litres (2.6 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 32
Flail tip speed: 54m/s (10629 fpm)
Rotor diameter: 219mm (8.6″)
Roller diameter: 194mm (7.6″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 935kg (2061lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 2.60m (8′ 6″)
Overall width:2.82m (9′ 3″)
Overall length: 1.15m (3′ 9″)
Cowl height**: 540mm (1′ 10″)
Cutting height: 35mm – 110mm (1 3/8″ – 4 5/16″)
Cutting capacity: 60mm (2 3/8″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 90 – 180hp (67 – 135kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.5 litres (2.6 pints)
Belt quantity: 6
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 32
Flail tip speed: 54m/s (10629 fpm)
Rotor diameter: 219mm (8.6″)
Roller diameter: 194mm (7.6″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 990kg (2183lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 2.80m (9′ 2″)
Overall width:3.00m (9′ 10″)
Overall length: 1.15m (3′ 9″)
Cowl height**: 540mm (1′ 10″)
Cutting height: 35mm – 110mm (1 3/8″ – 4 5/16″)
Cutting capacity: 60mm (2 3/8″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 90 – 180hp (67 – 135kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.5 litres (2.6 pints)
Belt quantity: 6
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 36
Flail tip speed: 54m/s (10629 fpm)
Rotor diameter: 219mm (8.6″)
Roller diameter: 194mm (7.6″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 1025kg (2260lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 3.00m (9′ 10″)
Overall width:3.19m (10′ 6″)
Overall length: 1.15m (3′ 9″)
Cowl height**: 540mm (1′ 10″)
Cutting height: 35mm – 110mm (1 3/8″ – 4 5/16″)
Cutting capacity: 60mm (2 3/8″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 100 – 180hp (75 – 135kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.5 litres (2.6 pints)
Belt quantity: 6
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 40
Flail tip speed: 54m/s (10629 fpm)
Rotor diameter: 219mm (8.6″)
Roller diameter: 194mm (7.6″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
