Minimum weight guide: 7500kg (1653lbs)
Machine weight*: 3100kg (6834lbs)
Hitch: Category 2 with clevis top link
Hitch position: Rear mount only
Cutting width: 6.20m (20′ 4″)
Working width:6.55m (21′ 6″)
Overall length: 2.20m (7′ 3″)
Transport width: 2.24m (8′ 1″)
Cutting height: 22mm – 83mm (7/8″ – 3 1/4″)
Cutting capacity: 80mm (3 3/16″)
Recommended Tractor HP: 120 – 280hp (90 – 209kW)
Power take-off speed: 1000rpm

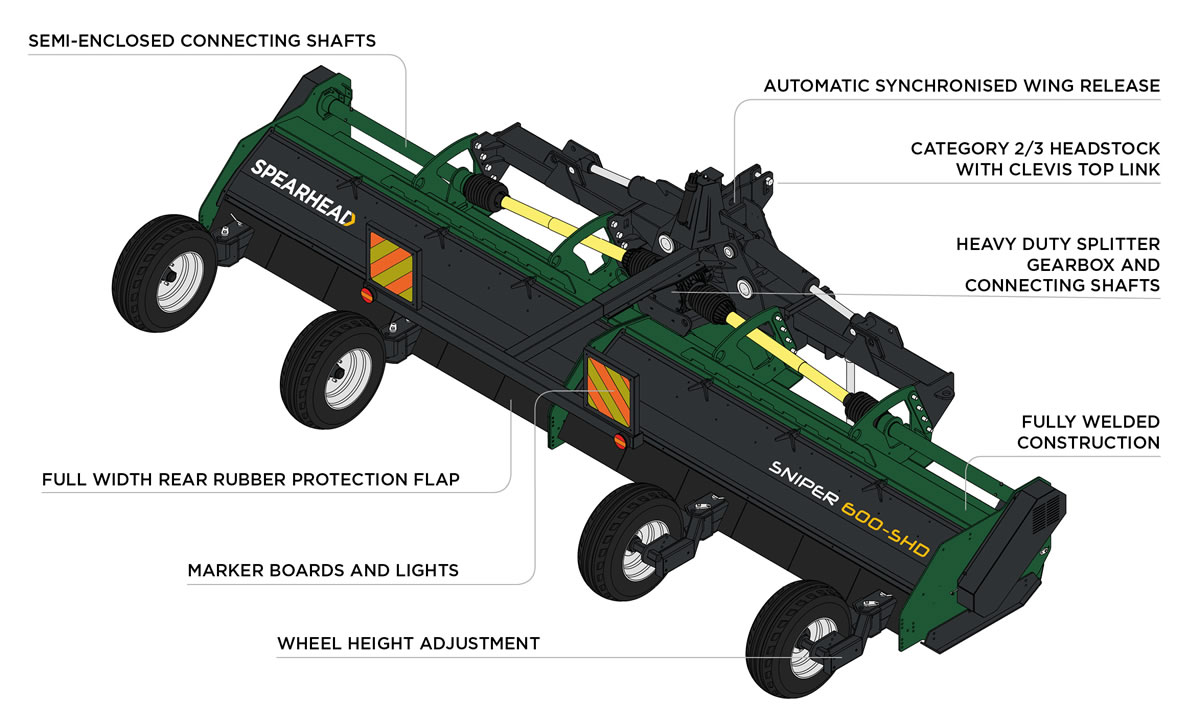

Gearbox: Cast iron housing with semi-enclosed connecting shafts
Input shaft: 1 3/4″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 4.4 litres (7.7 pints)
Belt quantity: 12 (6 per cowl)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 72
Flail tip speed: 62m/s (12204 fpm)
Rotor diameter: 219mm (8 10/16″)
Roller diameter: 273mm (10 3/4″)
*Weights may vary dependent on machine type and specification
