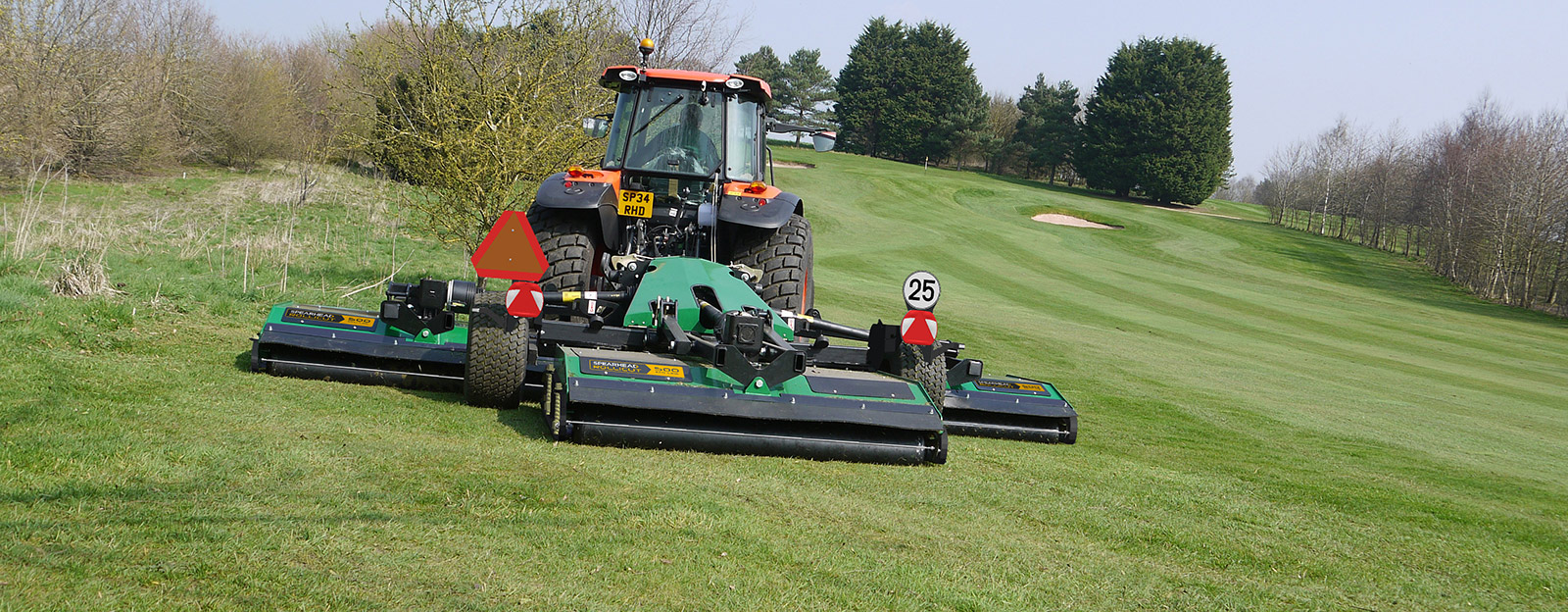

The Spearhead Rollicut triple gang mower is designed for light-duty amenity mowing and gives a high-quality finish in material up to 20mm. It excels in parkland, golf course,orchard and topping applications and is the perfect choice for mounting on compact tractors.

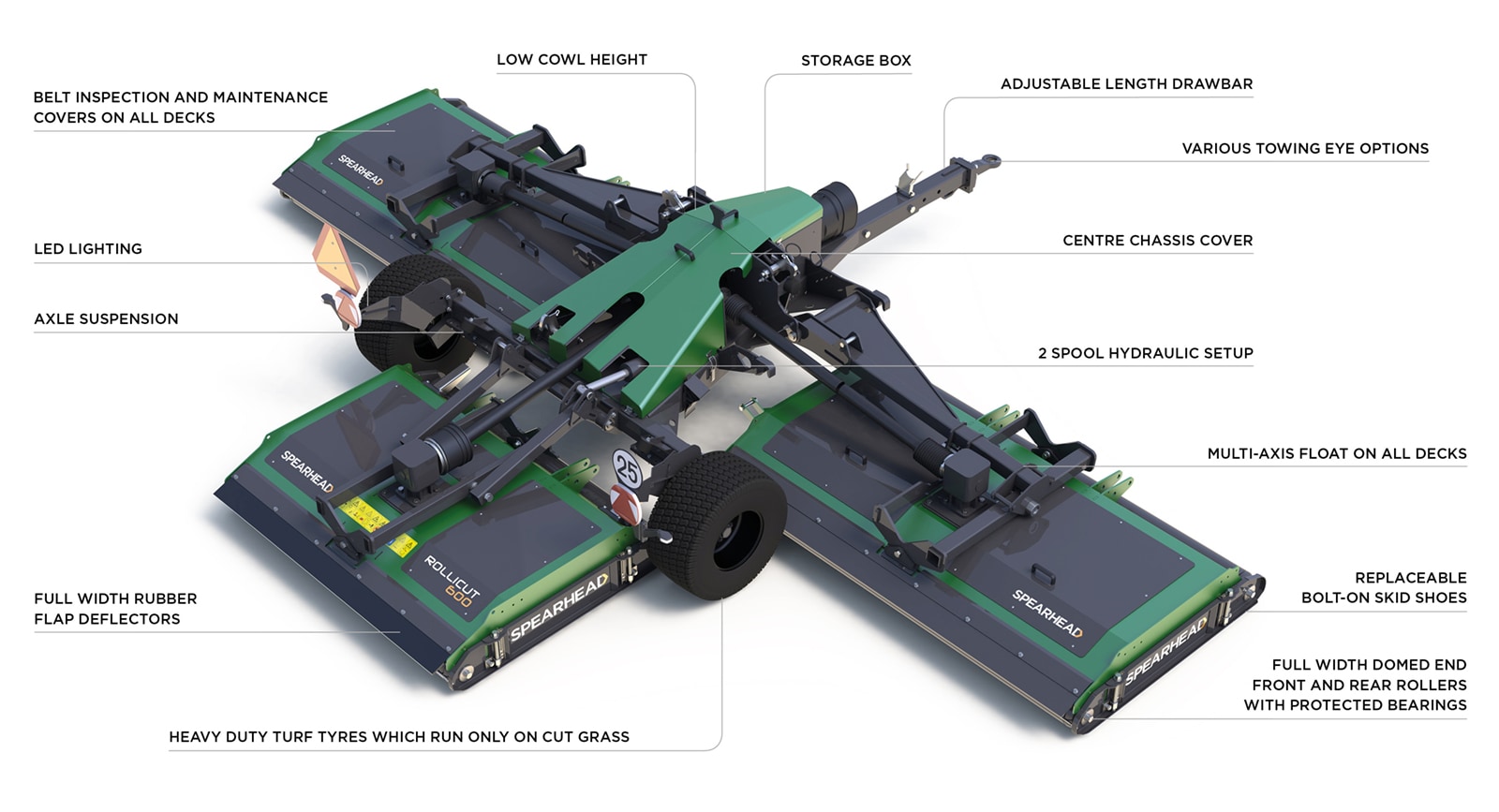

This Spearhead Rollicut triple gang range is available in either 5.0 or 6.0 metre cutting widths, featuring three, high suction styles blades per rotor designed to offer a comparable finish to conventional cylinder mowers; but without the expensive maintenance costs. The machine features impressive deck articulation following ground contours effectively to give a level cut and reduced scalping.

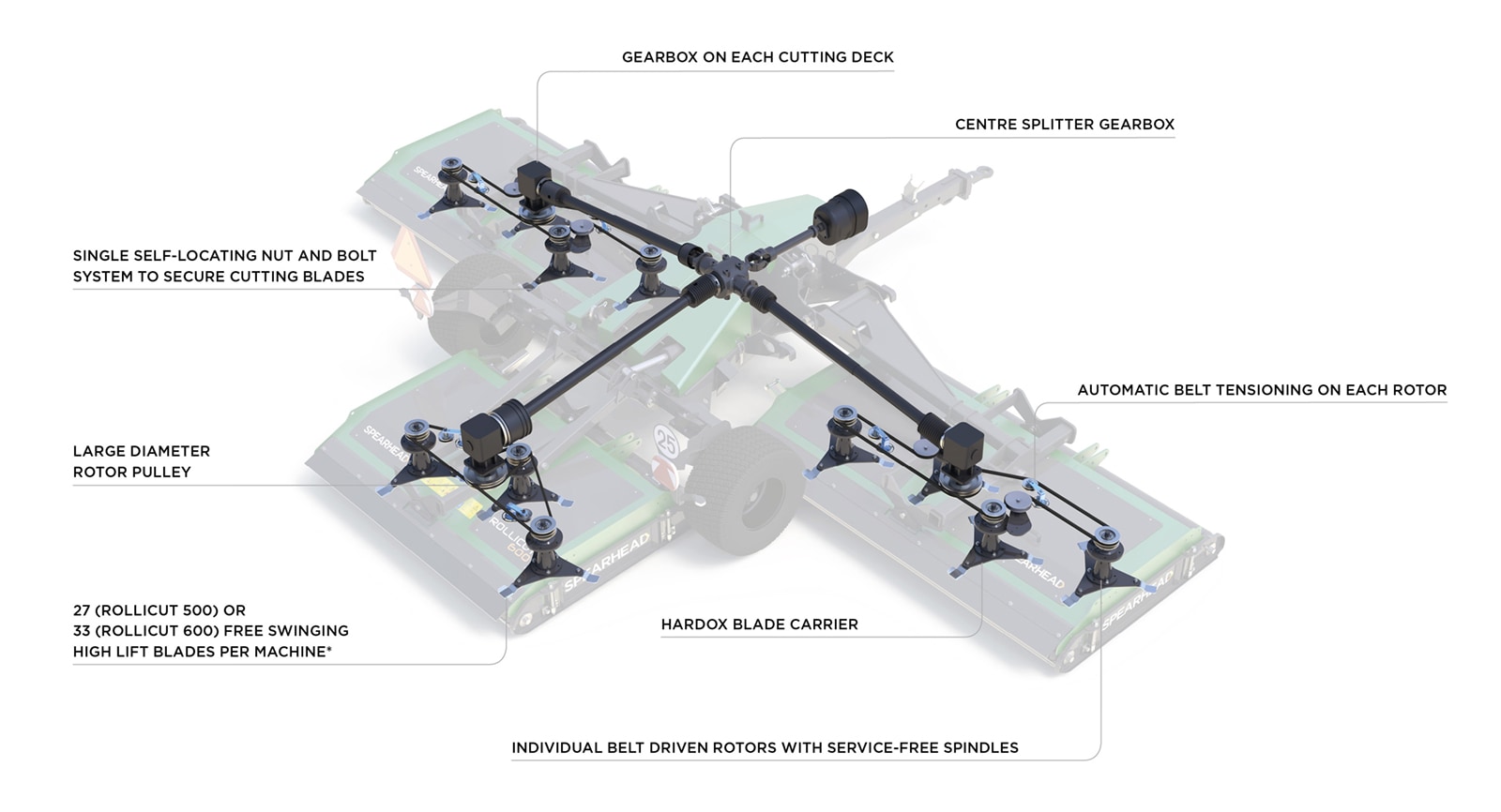

Self-tensioning belt drive gives reliable power transmission and with 168mm full width fine adjustment front and rear rollers, heavily baffled deck design and rear rubber flap, will ensure a fine mulch cut and well distributed finish.

AMENITY

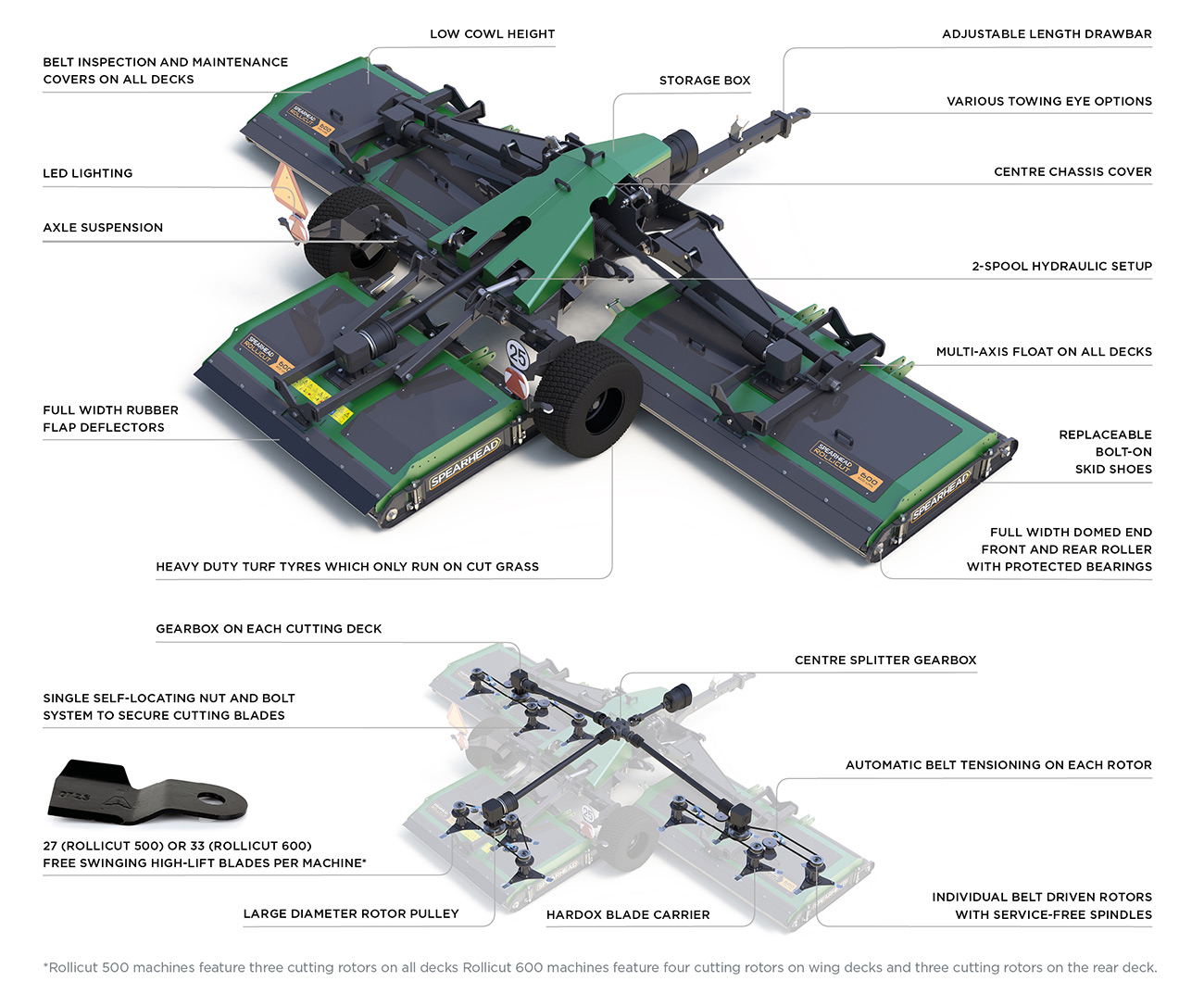

Features

Specification

Rollicut 500

Machine weight*: 2780kg (6129lbs)
Hitch: 40mm fixed
Hitch position: Rear mount only
Cutting width: 4.85m (15′ 11″)
Working width:4.97m (16′ 4″)
Overall length: 4.76m (15′ 8″)
Transport width: 2.66m (8′ 9″)
Cowl height**: 490mm (1′ 8″)
Transport height: 2.57m (8′ 6″)
Cutting height: 0mm – 110mm (0″ – 4 5/16″)
Cutting capacity: 20 mm (13/16″)
Recommended tractor HP: 60hp (45kW)
Power take-off speed: 540rpm
Input shaft: 1 3/8″ Z6 and 35mm output shaft
Driveline engagement: Fixed mechanical
Gearboxes (x3): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.3 litres (2.3 pints)
Belt quantity: 6 (2 per deck)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blade type: Fine cut, high lift
Blade quantity: 27
Blade tip speed: 87m/s (17126fpm)
Roller diameter (x2) (front+rear): 168mm (6 1/2″)
Roller adjustment: Manual
*Weights may vary dependent on machine specification
**Underside of cowl to skid
***Standard fitment, other options available

Rollicut 600

Machine weight*: 3080kg (6790lbs)
Hitch: 40mm fixed
Hitch position: Rear mount only
Cutting width: 5.99m (9′ 8″)
Working width:6.12m (20′ 1″)
Overall length: 4.76m (15′ 8″)
Transport width: 2.66m (8′ 9″)
Cowl height**: 490mm (1′ 8″)
Cutting height: 0mm – 110mm (0″ – 4 5/16″)
Cutting capacity: 20 mm (13/16″)
Recommended tractor HP: 70hp (53kW)
Power take-off speed: 540rpm
Input shaft: 1 3/8″ Z6 and 35mm output shaft
Driveline engagement: Fixed mechanical
Gearboxes (x3): Cast iron housing
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.3 litres (2.3 pints)
Belt quantity: 6 (2 per deck)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blade type: Fine cut, high lift
Blade quantity: 33
Blade tip speed: 87m/s (17126fpm)
Roller diameter (x2) (front+rear): 168mm (6 1/2″)
Roller adjustment: Manual
*Weights may vary dependent on machine specification
**Underside of cowl to skid
***Standard fitment, other options available
