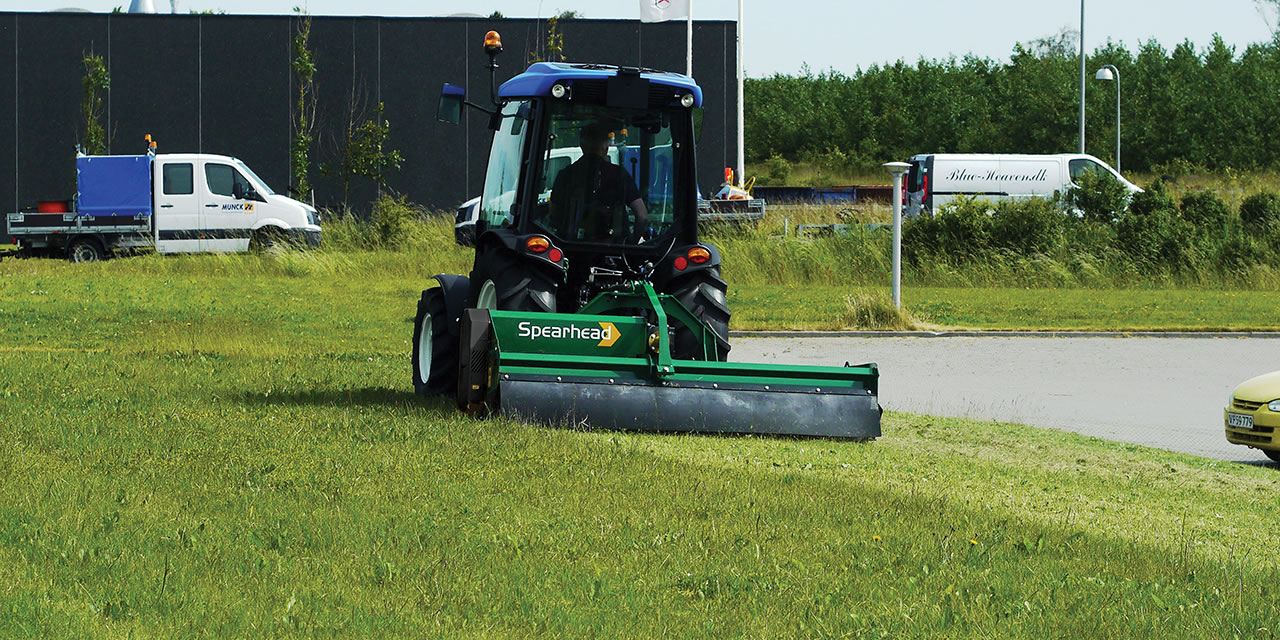

QS Range
The QS range of flail mowers is specifically designed for the maintenance of fine turf areas such as parks, sports fields and golf courses.
Utilising a specialist flail the quality of cut and the resulting finish is to the same exacting standard as a cylinder mower, coupled with this the robust build quality allows the machine to be effective on areas that are maintained only twice per year.
Features
- 1.50, 1.80 and 2.10 metre cutting widths
- Three point linkage mounting
- Manual adjust front and rear mounting
- Manual Offset
- 60hp bi-directional gearbox
- 540rpm PTO
- Double skin body
- Twisted flail
- Rear roller height adjustment
- Replaceable full length skid kit
- 15mm to 100mm cutting heights
- 20mm maximum cutting diameter
Specification
Q15S
Cutting width: 1.50m (4ft 9in)
Overall width: 1.80m (5ft 11in)
Transport width: 1.80m (5ft 11in)
Machine weight*: 360kg
Cutting range: 15 – 100mm
Number of flails: 48
PTO speed: 540rpm
Tractor power required**: 40hp
*Dependant on machine specification
**Dependant on conditions
Q18S
Cutting width: 1.80m (5ft 11in)
Overall width: 2.15m (7ft)
Transport width: 2.15m (7ft)
Machine weight*: 400kg
Cutting range: 15 – 100mm
Number of flails: 60
PTO speed: 540rpm
Tractor power required**: 45hp
*Dependant on machine specification
**Dependant on conditions
Q21S
Cutting width: 2.10m (6ft 11in)
Overall width: 2.45m (8ft)
Transport width: 2.45m (8ft)
Machine weight*: 420kg
Cutting range: 15 – 100mm
Number of flails: 66
PTO speed: 540rpm
Tractor power required**: 50hp
*Dependant on machine specification
**Dependant on conditions
