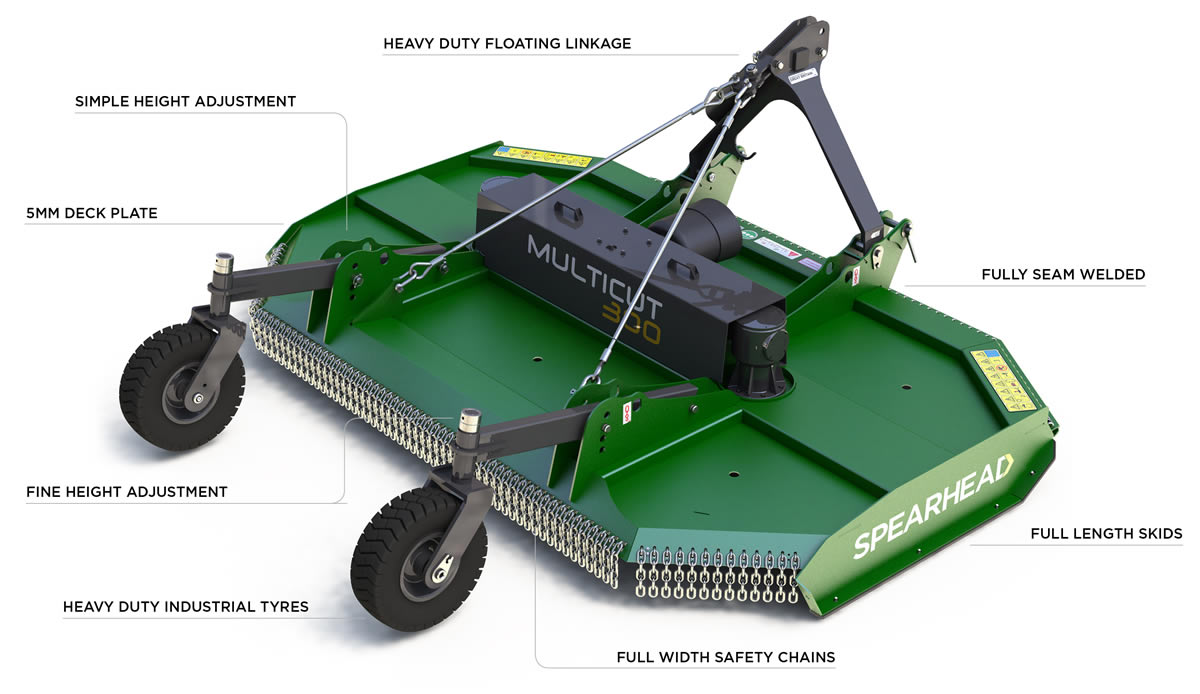

Overview
A true stalwart of the Spearhead range. The toughest machine of its type on the market. Tackling up to 100mm thickness, it delivers a professional finish, even in heavy scrub land applications.
This machine has twin rotors. With each handling two large 12mm thick steel blades, there are four in total. Coupled with our 165hp (123kW) gearbox, your productivity will go through the roof.

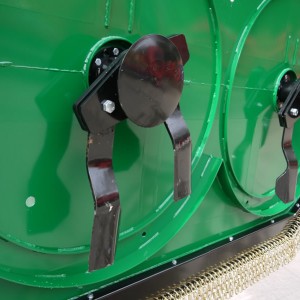

The trademark Multicut flat underside deck comes into its own as cutting width increases. Mulch spreads evenly with nothing to restrict it.
- 3 metre cut on the toughest terrains.

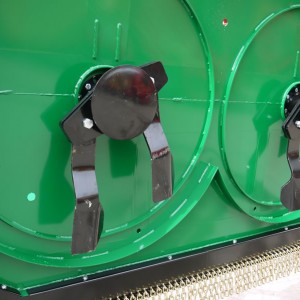

- Twin rotors (four blades) boost productivity.
- Flat underside ensures even mulch spread.
Watch the video
| AGRICULTURE |
| PASTURE |
| LIGHT SCRUB |
| AIRFIELD |
| STUBBLE MANAGEMENT |
Features
Dimensions
Standard Specifications
Machine weight*: 990kg (2183lbs) with front and rear single chain guards
Minimum weight guide: 4000kg (8819lbs)

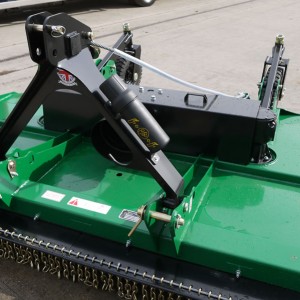

Hitch: Category 2 with floating clevis top link
Cutting width: 2.80m (9′ 4″)
Overall width: 3.03m (10′)
Overall length: 2.73m (9′)
Deck height**: 0.24m (10″)
Cutting height: 10mm – 350mm (3/8″ – 14″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 50hp (37kW)
Power take-off speed: 1000rpm

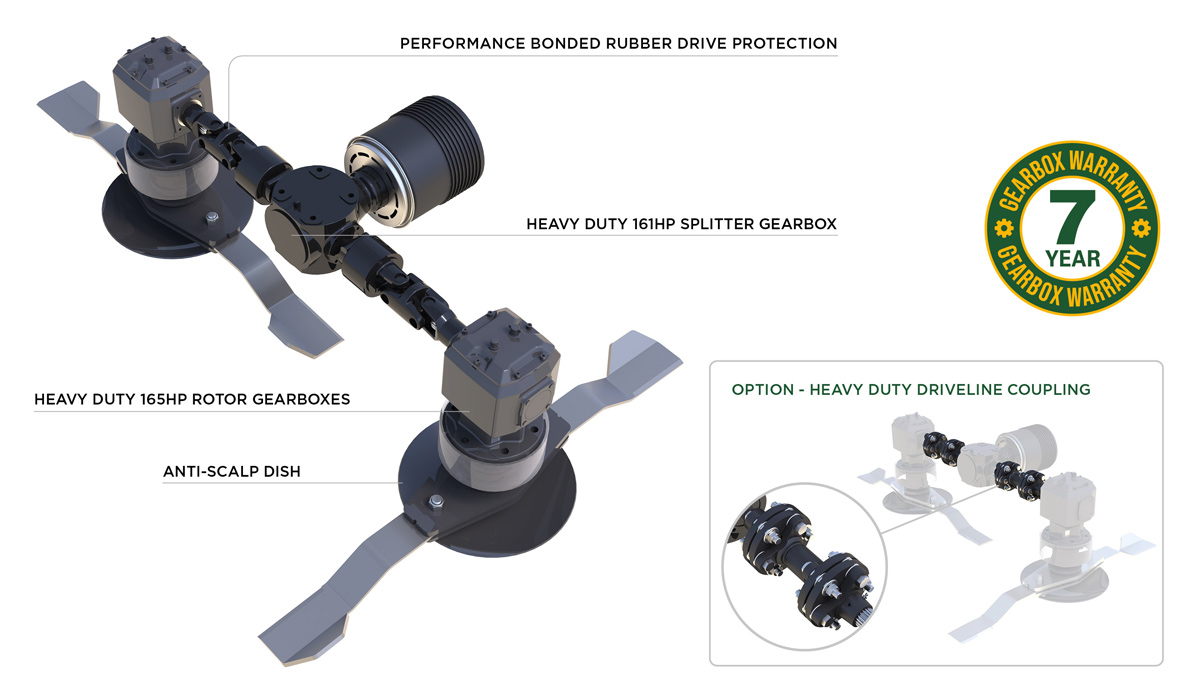

Gearbox rating: 165hp (123kW) & 130hp (97kW)

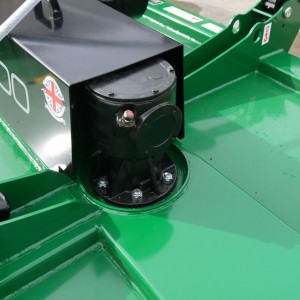

Gearboxes [x3]: Cast Iron housing
Input shaft: 1 3/8″ Z6 input shaft
Gearbox lubricant [splitter gearbox]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [rotor gearboxes (x2)]: 85W-140 oil
Gearbox oil capacity [splitter gearbox]: 1.7 litres (3.0 pints)
Gearbox oil capacity [rotor gearboxes (x2)]: 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Anti-scalp dish: 5mm (3/16″) round pan with blade holder bar
Blades (x6): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 85mps / 16734fpm

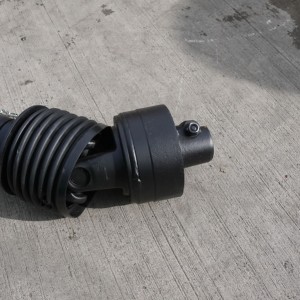

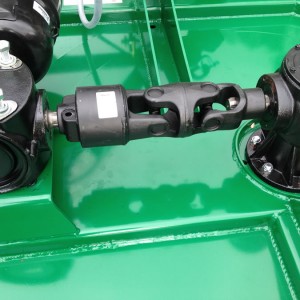

Driveline: ASAE Category 4
Driveline protection: Automatic torque limiter
Tailwheel mount assembly: Welded box section arm and caster fork with 360 degree swivel

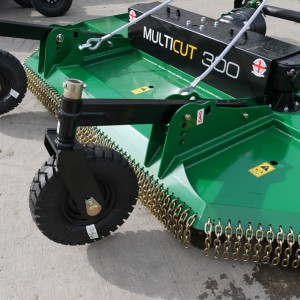

Tailwheels (x2): 5.00-8 rubber tyre with steel hub
Front guard: Single, two-piece chain guard
Rear guard: Single chain guard
* Weight may vary dependent on machine specification
** Underside of deck to skid
