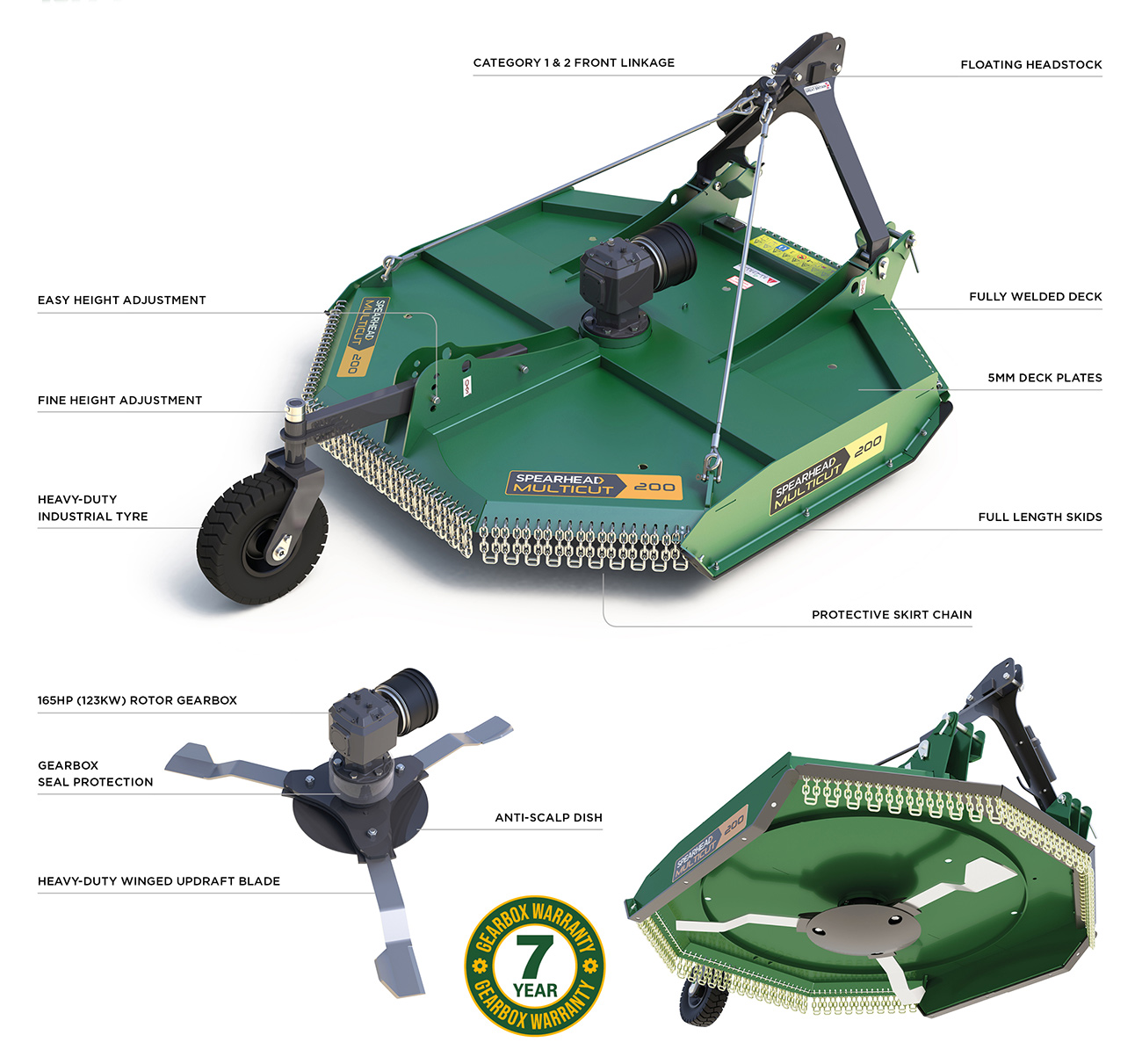

Machine weight*: 610kg (1344lbs)
Hitch: Category 1/2 with floating clevis top link
Cutting width: 2.00m (6′ 6″)
Overall width:2.08m (6′ 10″)
Overall length: 3.02m (9′ 11″)
Deck height**: 0.24m (10″)
Cutting height: 50mm – 250mm (2″ – 8″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 45hp (34kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1 3/8″ Z6 input shaft
Gearbox lubricant: 85W-140 oil
Gearbox oil capacity: 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Skid construction: Replaceable bolt-on skid shoes

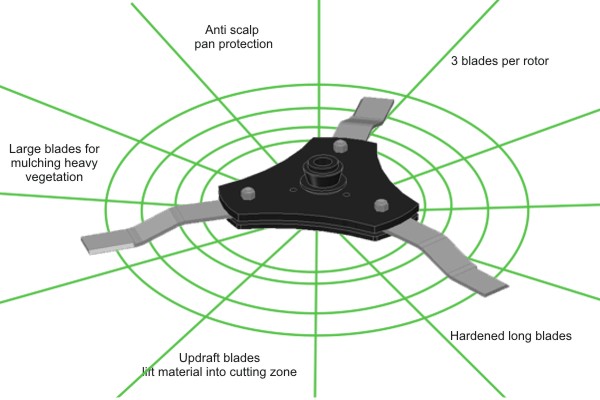

Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades (x3): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 85 m/s (16732 fpm)
Driveline: ASAE Category 4
Driveline protection: 2 plate slip clutch
Tailwheel mount assembly: Welded box section arm and caster fork with 360 degree swivel
Tailwheel: 5.00-8 rubber tyre with steel hub
Front guard: Looped full width safety chains
Rear guard: Looped full width safety chains
* Weight may vary dependent on machine specification
** Underside of deck to skid
