Overview
The Destroyer Flail is designed to cut and pulverize heavy scrub and forestry regrowth up to 350mm. It is the perfect choice for maintenance of areas such as woodland rides, dense scrub and plantations.

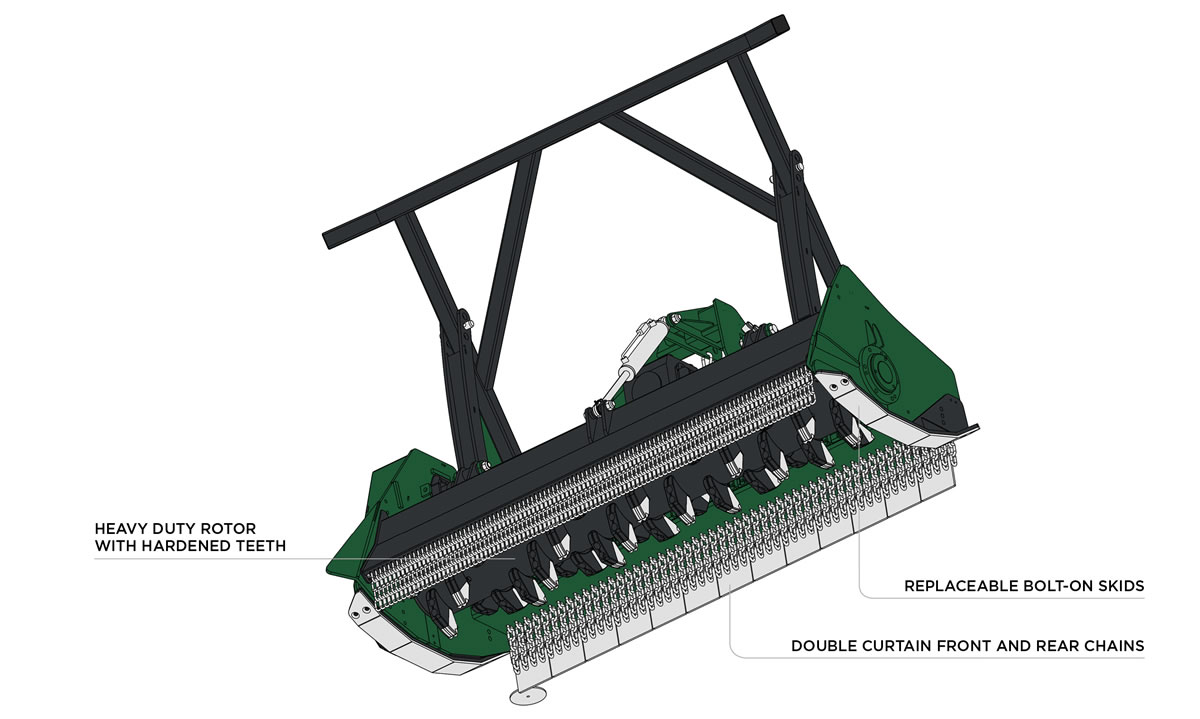

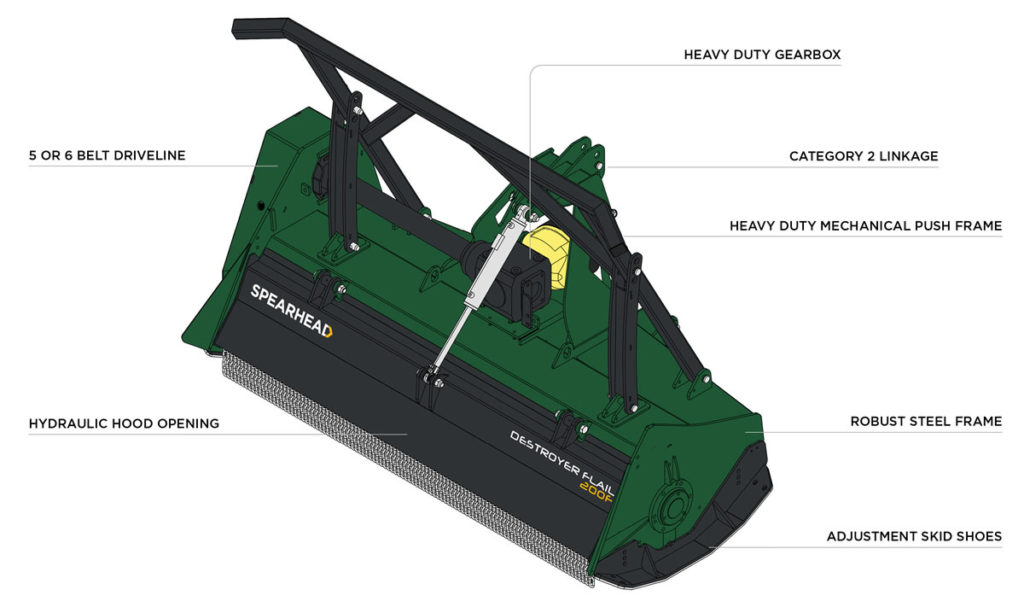

This highly robust machine features heavy duty mulching teeth fitted on an electronically balanced rotor mounted on enclosed, self-aligning bearings. A heavy-duty driveline with 5 or 6 belts (model dependent), gives reliable power transmission in the most challenging conditions. Other key features are a hydraulic opening hood and an adjustable push frame which work together to ensure that material is channeled efficiently into the mulcher.
The Destroyer Flail is available in a choice of working widths between 1.40 and 2.25 metres and is ideal for forward and reverse drive.
| HEAVY SCRUB |
| FORESTRY |
| AIRFIELD |
| WATERWAYS |
Features
Specifications
Machine weight*: 985kg (2172lbs)
Minimum weight guide: 6500kg (14330lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 1.40m (4′ 7″)
Overall width:1.70m (5′ 7″)
Overall length: 1.12m (3′ 8″)
Cutting height: 15mm – 60mm (5/8″ – 2 3/8″)
Cutting capacity: 350mm (13 3/4″)
Recommended tractor HP: 100hp (75kW)
Power take-off speed: 1000rpm
Opening intake hood: Hydraulic
Material leveller: Heavy-duty manual adjustable push frame
Gearbox and connecting shaft: Cast iron housing with full enclosed connecting driveline
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 4 litres (7 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Front intake protection: Single chain strip with outer plate protection
Rear output protection: Single chain strip mounted on hydraulic opening hood
Teeth: Heavy-duty tooth
Tooth quantity: 36
Tooth tip speed: 53 m/s (10433 fpm)
Rotor diameter: 450mm (1′ 6″)
Skid adjustment: Manual
*Weights may vary dependent on machine specification.
Machine weight*: 1055kg (2326lbs)
Minimum weight guide: 6500kg (14330lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 1.60m (5′ 3″)
Overall width:1.92m (6′ 4″)
Overall length: 1.12m (3′ 8″)
Cutting height: 15mm – 60mm (5/8″ – 2 3/8″)
Cutting capacity: 350mm (13 3/4″)
Recommended tractor HP: 110hp (82kW)
Power take-off speed: 1000rpm
Opening intake hood: Hydraulic
Material leveller: Heavy-duty manual adjustable push frame
Gearbox and connecting shaft: Cast iron housing with full enclosed connecting driveline
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 4 litres (7 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Front intake protection: Single chain strip with outer plate protection
Rear output protection: Single chain strip mounted on hydraulic opening hood
Teeth: Heavy-duty tooth
Tooth quantity: 48
Tooth tip speed: 53 m/s (10433 fpm)
Rotor diameter: 450mm (1′ 6″)
Skid adjustment: Manual
*Weights may vary dependent on machine specification.
Machine weight*: 1240kg (2734lbs)
Minimum weight guide: 6500kg (14330lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 2.00m (6′ 6″)
Overall width:2.34m (7′ 9″)
Overall length: 1.12m (3′ 8″)
Cutting height: 15mm – 60mm (5/8″ – 2 3/8″)
Cutting capacity: 350mm (13 3/4″)
Recommended tractor HP: 120hp (90kW)
Power take-off speed: 1000rpm
Opening intake hood: Hydraulic
Material leveller: Heavy-duty manual adjustable push frame
Gearbox and connecting shaft: Cast iron housing with full enclosed connecting driveline
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 4 litres (7 pints)
Belt quantity: 6
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Front intake protection: Single chain strip with outer plate protection
Rear output protection: Single chain strip mounted on hydraulic opening hood
Teeth: Heavy-duty tooth
Tooth quantity: 60
Tooth tip speed: 53 m/s (10433 fpm)
Rotor diameter: 450mm (1′ 6″)
Skid adjustment: Manual
*Weights may vary dependent on machine specification.
Machine weight*: 1285kg (2833lbs)
Minimum weight guide: 6500kg (14330lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 2.25m (7′ 4″)
Overall width:2.54m (8′ 4″)
Overall length: 1.12m (3′ 8″)
Cutting height: 15mm – 60mm (5/8″ – 2 3/8″)
Cutting capacity: 350mm (13 3/4″)
Recommended tractor HP: 130hp (97kW)
Power take-off speed: 1000rpm
Opening intake hood: Hydraulic
Material leveller: Heavy-duty manual adjustable push frame
Gearbox and connecting shaft: Cast iron housing with full enclosed connecting driveline
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 4 litres (7 pints)
Belt quantity: 6
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Front intake protection: Single chain strip with outer plate protection
Rear output protection: Single chain strip mounted on hydraulic opening hood
Teeth: Heavy-duty tooth
Tooth quantity: 60
Tooth tip speed: 53 m/s (10433 fpm)
Rotor diameter: 450mm (1′ 6″)
Skid adjustment: Manual
*Weights may vary dependent on machine specification.
