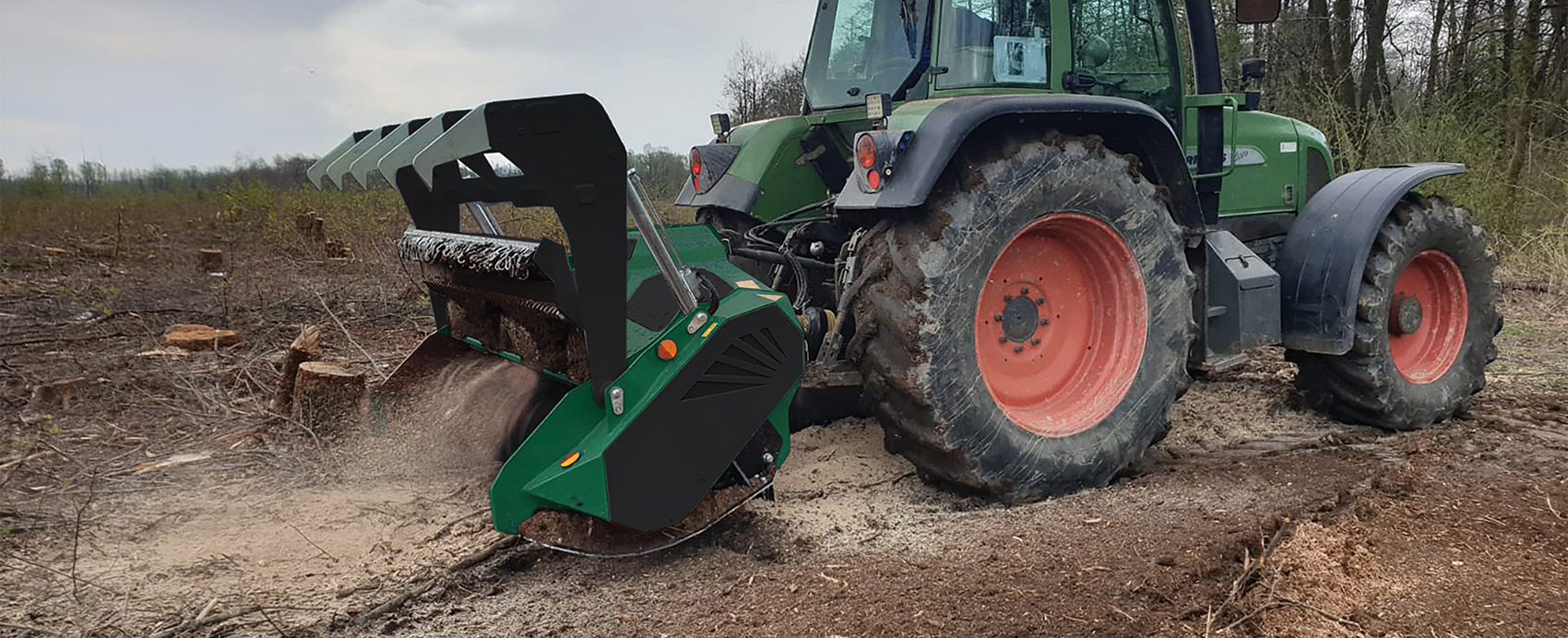

The Destroyer Flail HD is designed to cut and pulverize heavy scrub and forestry regrowth up to 250mm. It is the perfect choice for high output operators in maintaining areas such as woodland dense scrub and plantations.

This highly robust machine features heavy duty mulching teeth fitted on an electronically balanced rotor mounted on enclosed, self-aligning bearings. A heavy-duty driveline with 10 belts, gives reliable power transmission in the most challenging conditions. Other key features are an adjustable hydraulic opening hood and push frame with grab teeth, which work together to ensure that material is channeled efficiently into the mulcher.

The Destroyer Flail HD is available in a working width of 2.5 metres and is ideal for forward and reverse drive.

HEAVY SCRUB
FORESTRY
AIRFIELD
WATERWAYS

Features

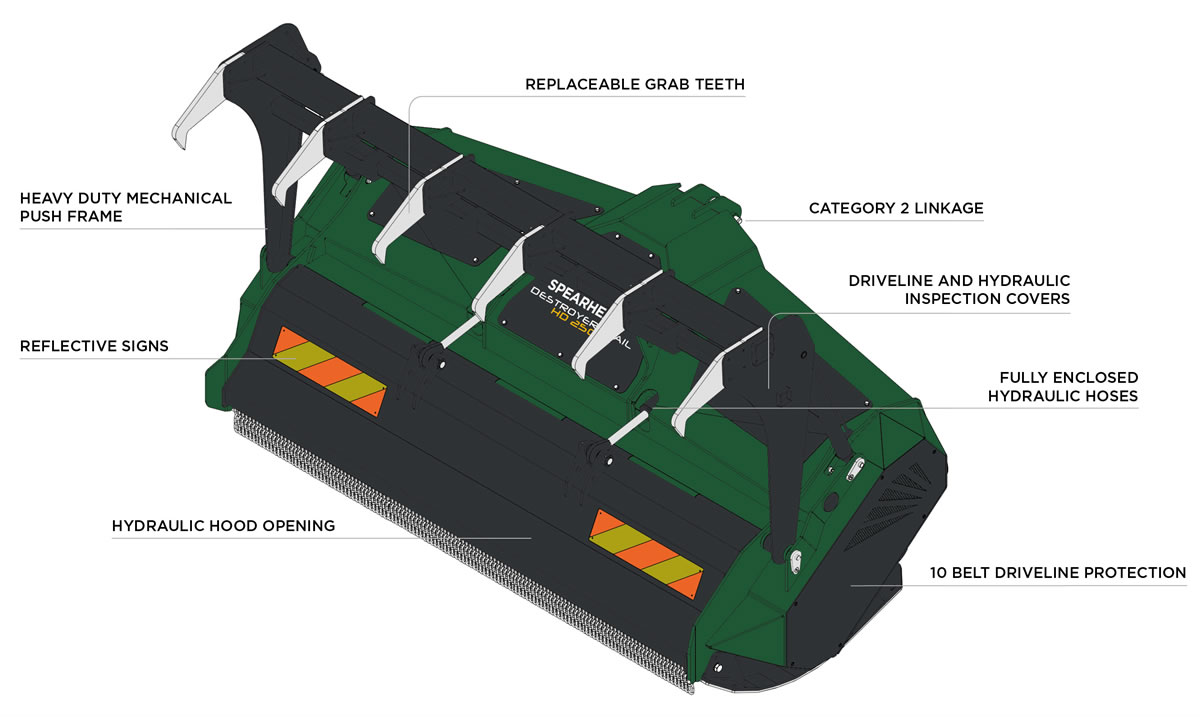

Destroyer Flail HD Features

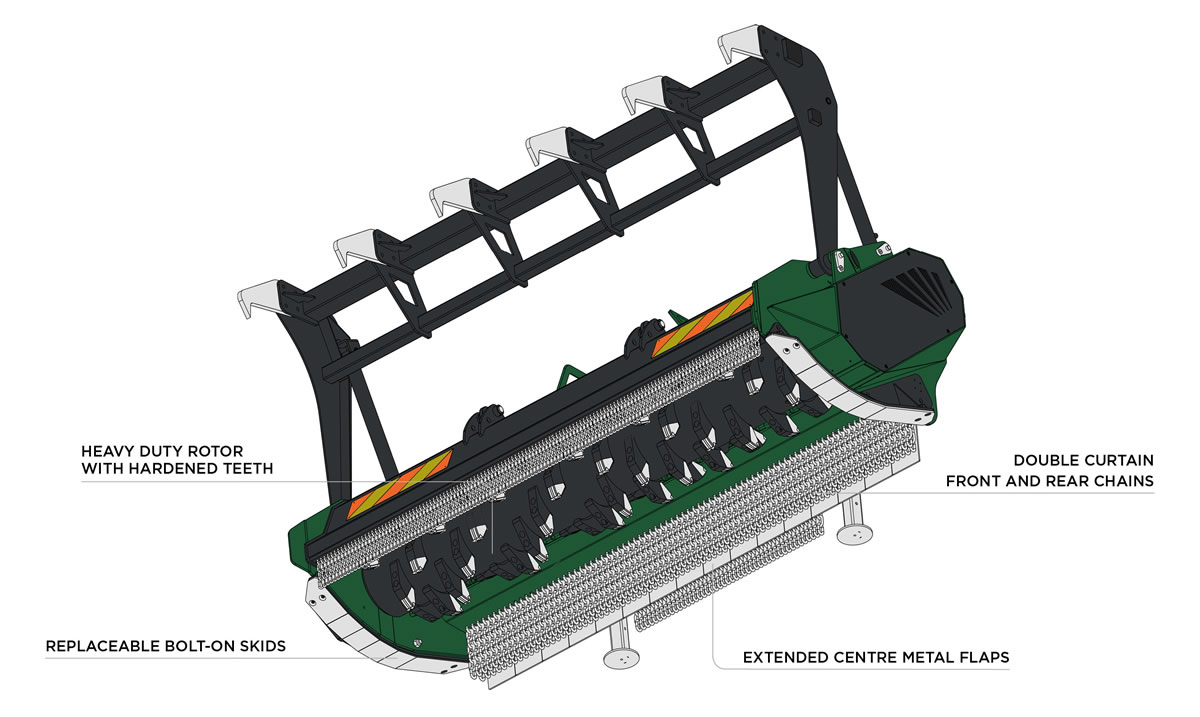

Destroyer Flail HD Underside View

Specifications

Machine weight*: 2650kg (5842lbs)
Minimum weight guide: 8000kg (17637lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 2.50m (8′ 2″)
Overall width:2.92m (9′ 7″)
Overall length: 1.52m (5′)
Cutting height: 40mm – 80mm (1 5/8″ – 2 3/8″)
Cutting capacity: 450mm (17 11/16″)
Recommended tractor HP: 200hp (149kW)
Power take-off speed: 1000rpm
Opening intake hood: Hydraulic
Material leveller: Heavy-duty hydraulic adjustable push frame with 6 grab claws
Gearbox and connecting shaft: Cast iron housing with fully enclosed connecting driveshafts
Input shaft: 1 3/4″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 4 litres (7 pints)
Belt quantity: 10 (5 per cowl end)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Front intake protection: Single inner chain strip with outer plate protection. Secondary chain strip protection under input driveshaft
Rear output protection: Single chain strip mounted on hydraulic opening hood
Teeth: Heavy-duty tooth
Tooth quantity: 72
Tooth tip speed: 53 m/s (10433 fpm)
Rotor diameter: 520mm (1′ 7″)
Skid adjustment: Manual
*Weights may vary dependent on machine specification.
