Machine weight*: 635kg (1400lbs)
Minimum weight guide: 2900kg (6394lbs)
Hitch: Category 1/2 with floating clevis top link
Cutting width: 1.90m (6′ 3″)
Overall width:2.08m (6′ 10″)
Overall length: 3.02m (9′ 11″)
Deck height**: 0.24m (10″)
Cutting height: 30mm – 260mm (1 3/16″ – 10 1/4″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 45hp (34kW)
Power take-off speed: 540rpm
Gearbox: 1 x Cast iron housing
Input shaft: 1 3/8″ Z6 input shaft
Gearbox lubricant [rotor]: 85W-140 oil
Gearbox oil capacity [rotor gearbox]: 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Skid construction: Replaceable bolt-on skid shoes

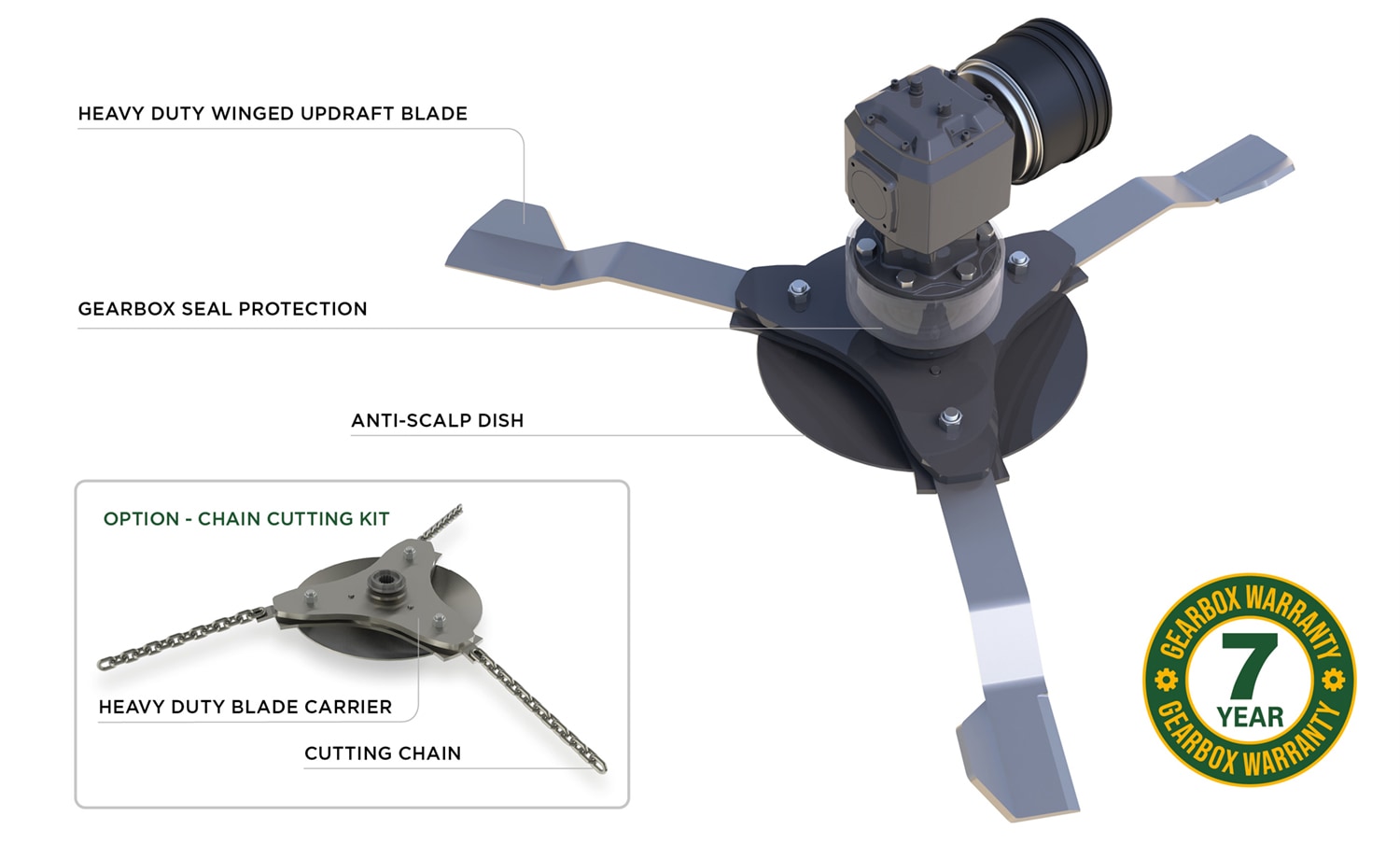

Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades standard: 3 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 85 m/s (16732 fpm)
Driveline: ASAE Category 6
Driveline protection: 2 plate slip clutch
Tailwheel mount assembly: Welded box section arm and caster fork with 360 degree swivel
Tailwheel: 5.00-8 rubber tyre with steel rim
Front guard: Looped chain guard
Rear guard: Looped chain guard
Options: 6 or 21 spline input shaft / Chain cutting kit
* Weight may vary dependent on machine specification
** Underside of deck to skid
